About this item

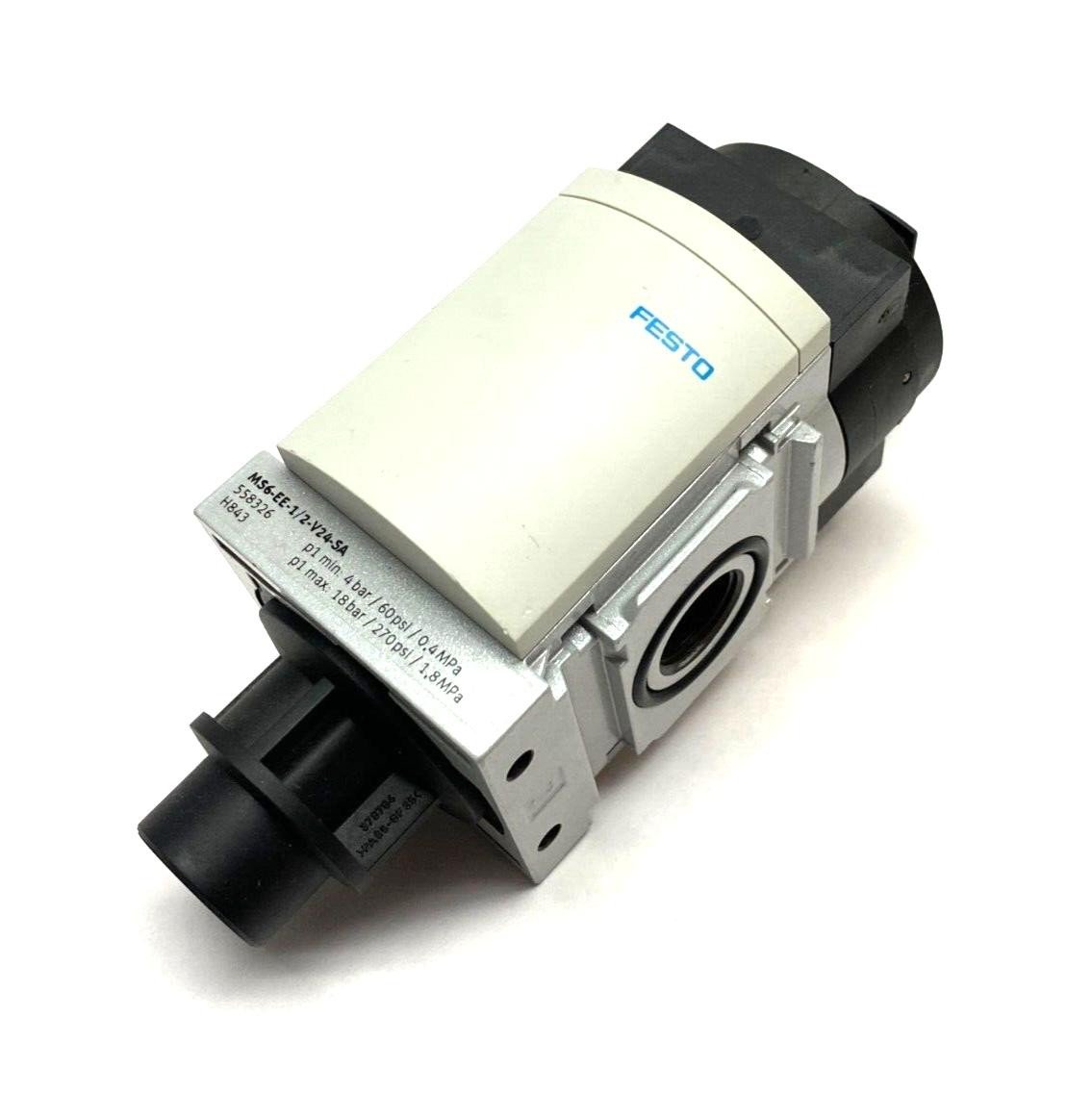

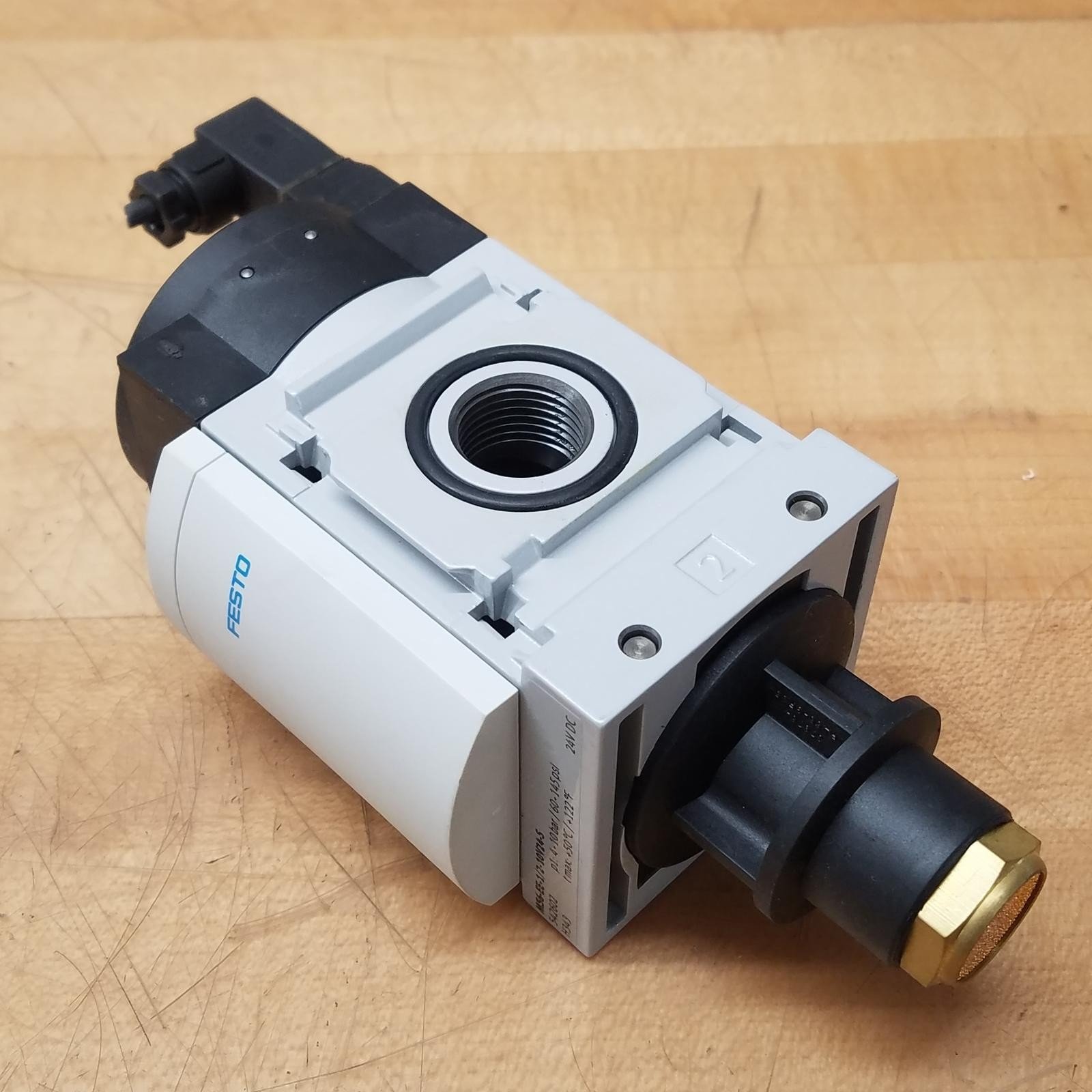

The Festo MS6-EE-1/2-V24 (611663) is a 24V DC electrically actuated 3/2-way pneumatic on/off valve with a G 1/2 connection, mechanical spring return, and a nominal flow rate of approximately 7,000 l/min. Designed for compatible industrial compressed-air systems, it features a 4–18 bar operating-pressure range, 100% duty cycle, and IP65 protection. Suitable for pneumatic automation, machine control, and manufacturing applications.
Worldwide Shipping
Free shipping on orders over $500
Fast Shipping
1-3 dispatch on all the orders
Original Products
100% genuine industrial parts
30 Days Moneyback
Hassle-free returns & refunds
📝 Product Overview
The Festo MS6-EE-1/2-V24 Electrically Actuated On/Off Valve (611663) is a high-performance pneumatic control component designed to manage compressed-air supply in industrial automation systems. Part of the Festo MS Series, this valve provides dependable air shut-off and switching functionality for machinery, pneumatic equipment, and automated production processes. Its 3/2-way valve configuration, electrical actuation, and mechanical spring return make it suitable for applications that require controlled pneumatic operation and reliable switching.
Designed for industrial compressed-air systems, the Festo MS6-EE-1/2-V24 combines a compact construction with a nominal flow rate of approximately 7,000 l/min. Its G 1/2 connection size supports integration into compatible pneumatic piping and air preparation installations. With a specified operating-pressure range of 4 to 18 bar, this valve can be used in a variety of industrial applications where reliable compressed-air control is essential.
The Festo MS6-EE-1/2-V24 operates with a 24V DC solenoid rated at 1.5 W, making it suitable for compatible industrial electrical control circuits. Its 100% duty-cycle rating supports continuous energization within the manufacturer’s specified operating conditions. This capability can be beneficial in automated production environments where pneumatic control components must operate consistently throughout extended production cycles.
The Festo MS6-EE-1/2-V24 also includes manual override functionality, with detecting and non- operating options specified for the product. Manual override can assist with installation, commissioning, and maintenance procedures when used according to the manufacturer’s instructions. Its corrosion-resistance classification is CRC 2, intended for moderate corrosion stress. The valve also meets the stated RoHS requirements and LABS/PWIS conformity classification listed for this version.
For machine builders, maintenance teams, and industrial automation professionals, the Festo MS6-EE-1/2-V24 provides a practical solution for electrical switching of pneumatic supply. It can be considered for compatible packaging machinery, assembly equipment, conveyor systems, manufacturing lines, and compressed-air distribution installations.
Festo MS6-EE-1/2-V24 Key Specifications
| Specification | Details |
|---|---|
| Model Number | MS6-EE-1/2-V24 |
| Manufacturer | Festo |
| Manufacturer Part Number | 611663 |
| Product Series | MS Series |
| Size | 6 |
| Product Type | Electrically actuated on/off valve |
| Valve Design | Piston gate valve |
| Valve Function | 3/2-way, normally closed, monostable |
| Actuation | Electrical, pilot actuated |
| Return Mechanism | Mechanical spring |
| Connection Size | G 1/2 |
| Operating Pressure | 4–18 bar |
| Standard Nominal Flow Rate | Approximately 7,000 l/min |
| Coil Voltage | 24V DC |
| Coil Power | 1.5 W |
| Duty Cycle | 100% |
| Operating Medium | Compressed air / inert gases |
| Manual Override | Detenting and non-detenting |
| C Value | 29 l/sbar |
| b Value | 0.4 |
| Mounting | Inline or with compatible accessories |
| Mounting Position | Any |
| Protection Rating | IP65 |
| Media Temperature | −10°C to +60°C |
| Ambient Temperature | −10°C to +60°C |
| Corrosion Resistance | CRC 2 – moderate corrosion stress |
| RoHS | Compliant |
| LABS/PWIS | VDMA24364-B1/B2-L compliant |
| Feature | Benefit |
|---|---|
| 3/2-way normally closed configuration | Supports controlled pneumatic switching and air shut-off. |
| 24V DC electrical actuation | Enables integration into compatible industrial control circuits. |
| 1.5 W solenoid | Supports low-power electrical actuation within specified conditions. |
| 4–18 bar pressure range | Accommodates compatible industrial compressed-air systems. |
| Approximately 7,000 l/min nominal flow | Supports substantial airflow in appropriately designed installations. |
| Mechanical spring return | Returns the valve mechanism to its default position when the actuation conditions permit. |
| 100% duty cycle | Supports continuous energization within rated operating conditions. |
| IP65 protection | Provides dust protection and resistance to water jets when correctly installed. |
| Manual override functionality | Assists with appropriate commissioning and maintenance procedures. |
| G 1/2 connection | Simplifies integration with compatible pneumatic connections. |
| Compact MS6 Series design | Supports installation in suitable industrial pneumatic assemblies. |
| Flexible mounting options | Allows inline installation or mounting with compatible accessories. |
| RoHS compliance | Supports applicable restrictions on hazardous substances. |
| Application | Purpose |
|---|---|
| Pneumatic automation systems | Controls compressed-air supply in automated equipment. |
| Industrial compressed-air systems | Supports pneumatic supply switching and isolation. |
| Machine control systems | Integrates pneumatic functions with electrical controls. |
| Packaging machinery | Supports pneumatic operations in compatible packaging equipment. |
| Manufacturing equipment | Provides switching functionality for pneumatic circuits. |
| Pneumatic actuators | Controls air supply in suitable actuator systems. |
| Conveyor systems | Supports pneumatic control functions in material handling. |
| Assembly machinery | Enables controlled pneumatic operations during assembly. |
| Automated production lines | Integrates with compatible PLC-controlled pneumatic equipment. |
| PLC-controlled systems | Provides electrically commanded pneumatic switching. |
| Air-supply isolation | Supports appropriate compressed-air shut-off arrangements. |
| Maintenance and service systems | Assists with pneumatic system control when installed for the intended purpose. |
📦 What’s Included
-
1 × Festo MS6-EE-1/2-V24 Electrically Actuated On/Off Valve
-
Manufacturer part number: 611663
