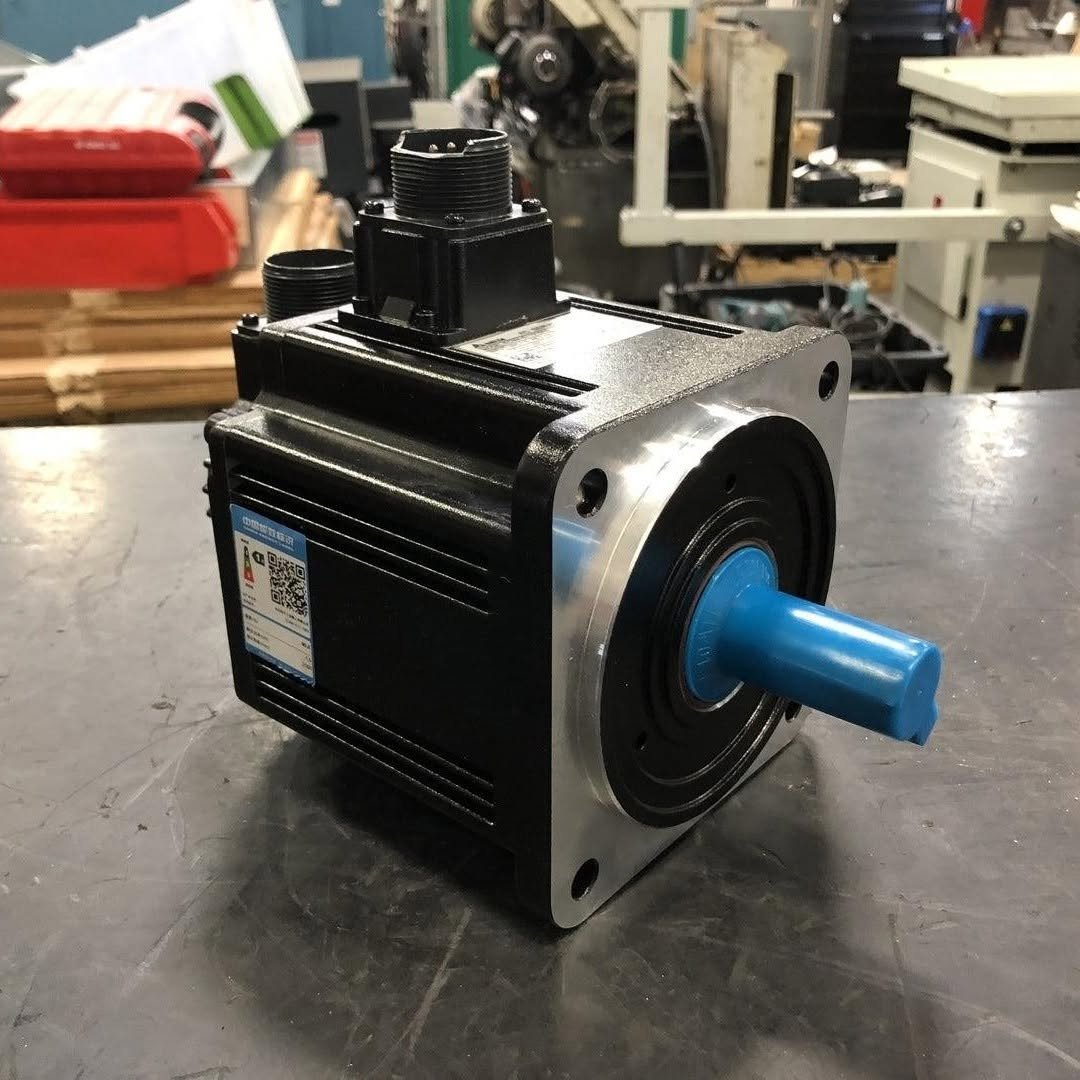

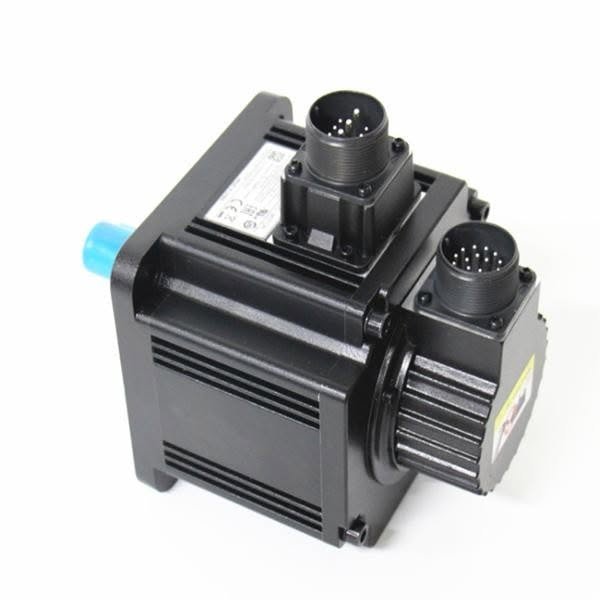

Delta ECMA-E11315RS – High-Precision, Reliable 1.5 kW Servo Motor
$ 274.00
About this item
The Delta ECMA-E11315RS 1.5 kW AC Servo Motor belongs to the ASDA-A2 Series and features a 220 VAC supply specification, 7.16 Nm rated torque, 2000 RPM rated speed, and a 20-bit incremental encoder. With a medium-inertia design, keyed shaft, oil seal, and IP65 protection, it is designed for compatible industrial motion-control applications.
Worldwide Shipping
Free shipping on orders over $500
Fast Shipping
1-3 dispatch on all the orders
Original Products
100% genuine industrial parts
30 Days Moneyback
Hassle-free returns & refunds
📝 Product Overview
The Delta ECMA-E11315RS AC Servo Motor is a high-performance industrial motion-control motor designed for precision positioning, dynamic response, and reliable operation in automated manufacturing environments. Belonging to the Delta ASDA-A2 Series, this 1.5 kW servo motor is engineered for applications that require accurate speed control, controlled acceleration, and coordinated machine movement.
Operating with a specified 220 VAC supply, the Delta ECMA-E11315RS delivers a rated output power of 1.5 kW, rated torque of 7.16 Nm, and rated speed of 2000 RPM. Its maximum torque is specified as 21.48 Nm, while the maximum speed reaches 3000 RPM. These characteristics make it suitable for compatible servo-driven machinery that requires controlled motion across a range of operating conditions.
The Delta ECMA-E11315RS features a medium-inertia rotor design. Medium-inertia servo motors can be useful in applications that need a balance between positioning performance and mechanical stability. The suitability of this inertia category depends on the connected load, transmission mechanism, acceleration requirements, and overall machine design. Proper motor sizing and servo tuning remain essential for achieving the intended performance.
The Delta ECMA-E11315RS is supplied without a holding brake. For automation integrators, machine builders, maintenance teams, and industrial equipment suppliers, the Delta ECMA-E11315RS offers a practical servo-motor option for compatible precision motion-control systems. Before purchasing, verify the complete model number, electrical specifications, encoder compatibility, mounting dimensions, shaft details, and drive requirements to ensure the motor meets the needs of the intended application.
Specifications Details : Delta ECMA-E11315RS
| Specification | Details |
|---|---|
| Model Number | ECMA-E11315RS |
| Manufacturer | Delta Electronics |
| Series | ASDA-A2 |
| Product Type | AC Servo Motor |
| Rated Output Power | 1.5 kW |
| Supply Voltage | 220 VAC |
| Phase | 1/3 Phase, as supplied; verify the exact model datasheet |
| Rated Torque | 7.16 Nm |
| Maximum Torque | 21.48 Nm |
| Rated Speed | 2000 RPM |
| Maximum Speed | 3000 RPM |
| Rated Current | 8.3 A |
| Maximum Current | 24.9 A |
| Inertia | Medium |
| Encoder Type | Incremental |
| Encoder Resolution | 20-bit |
| Frame Size | 130 mm |
| Shaft Diameter | 22 mm |
| Shaft Type | Solid keyed shaft with tapped end |
| Holding Brake | No brake |
| Shaft Seal | Oil seal included |
| Protection Rating | IP65 |
| Mounting Type | Flange mounting |
| Approximate Length | 167.5 mm, as supplied |
| Compatible Drive Family | Delta ASDA-A2 220 V servo drives |
| Feature | Benefit |
|---|---|
| 1.5 kW Rated Output | Supports demanding industrial motion-control applications. |
| 7.16 Nm Rated Torque | Provides specified continuous operating torque under rated conditions. |
| 21.48 Nm Maximum Torque | Supports dynamic acceleration and short-duration torque demands within rated limits. |
| 2000 RPM Rated Speed | Suitable for applications requiring controlled rotational speed. |
| Up to 3000 RPM Maximum Speed | Offers an extended speed range for compatible machine operations. |
| 20-Bit Incremental Encoder | Provides feedback for precision motion-control systems. |
| Medium-Inertia Design | Supports suitable positioning applications requiring a balance of response and stability. |
| Keyed Shaft with Tapped End | Enables secure mechanical coupling with compatible components. |
| Oil Seal | Helps protect the shaft area when properly installed and maintained. |
| IP65 Protection | Provides defined protection against dust ingress and water jets. |
| 130 mm Frame Size | Supports integration into compatible flange-mounted machine designs. |
| ASDA-A2 Compatibility | Designed for use with compatible Delta ASDA-A2 servo drives. |
| No Holding Brake | Allows use in applications where a motor-mounted holding brake is not required. |
| Application | Purpose |
|---|---|
| Industrial Automation | Provides controlled rotary motion for automated equipment. |
| CNC Machinery | Supports coordinated movement in compatible machine-tool systems. |
| Packaging Machinery | Drives suitable packaging and processing mechanisms. |
| Rotary Cutting Machines | Supports controlled rotational movement in cutting applications. |
| Synchronized Motion Systems | Enables coordinated movement when integrated with a suitable servo controller. |
| Material Handling Equipment | Drives compatible transfer and positioning mechanisms. |
| Assembly Machinery | Supports repeatable movement during automated assembly processes. |
| Production Machinery | Provides servo-driven movement in manufacturing equipment. |
| Precision Positioning Systems | Supports controlled positioning with suitable feedback and tuning. |
| Conveyor Systems | Drives compatible conveyor mechanisms. |
| Servo-Driven Manufacturing Equipment | Provides controlled motion in automated production environments. |
| Industrial Motion-Control Systems | Supports applications requiring controlled speed, torque, and positioning. |
📦 What’s Included
- Delta ECMA-E11315RS AC Servo Motor
- Model: ECMA-E11315RS
- Rated Output Power: 1.5 kW
