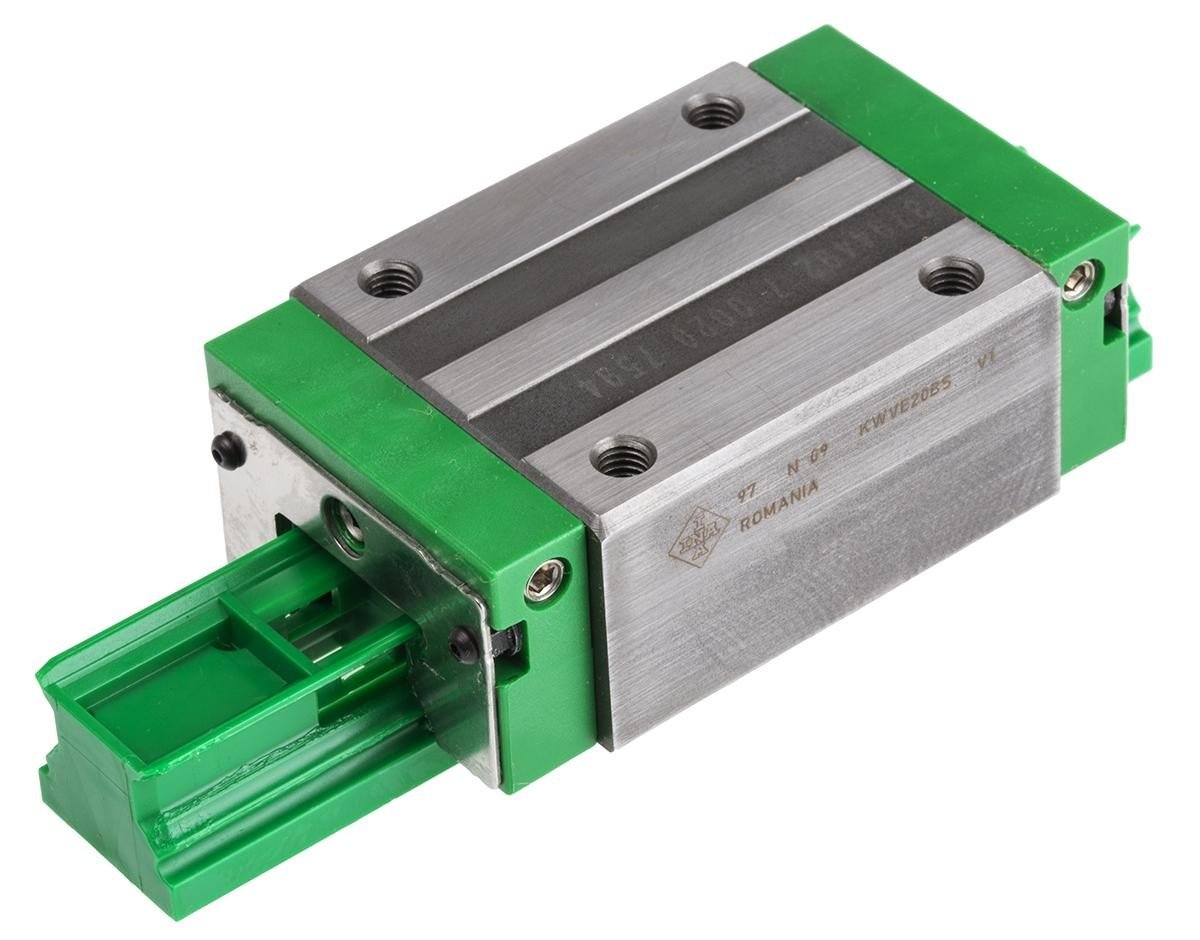

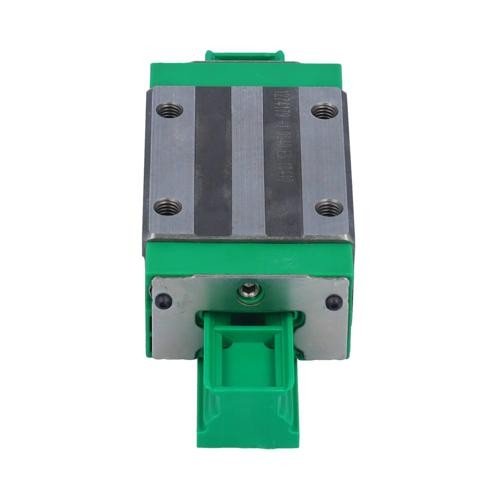

KWVE20-B-S-V1-T11 Linear Bearing – Reliable and High Performance INA Precision Guide Carriage
$ 201.00
About this item
TheKWVE20-B-S-V1-T11 Linear Bearing is a compact, narrow recirculating ball carriage designed for precision linear motion in industrial automation, CNC machinery, robotics, and machine-building applications. The supplied base specifications include a 20 mm guideway size, four-row ball circulation, V1 slight preload, a 13,100 N dynamic load rating, and a 27,000 N static load rating. Verify suffix-specific specifications and guideway compatibility before ordering. The guide rail is sold separately unless otherwise stated.
Worldwide Shipping
Free shipping on orders over $500
Fast Shipping
1-3 dispatch on all the orders
Original Products
100% genuine industrial parts
30 Days Moneyback
Hassle-free returns & refunds
📝 Product Overview
The KWVE20-B-S-V1-T11 Linear Bearing is a precision-engineered linear motion component designed to support accurate, smooth, and controlled movement in industrial machinery and automation systems. Manufactured under the INA brand of Schaeffler, this recirculating ball bearing carriage belongs to the KWVE20 series and is intended for applications requiring dependable linear guidance, repeatable positioning, and efficient movement along a compatible linear guideway.
The KWVE20-B-S-V1-T11 Linear Bearing features a compact, narrow carriage configuration that makes it suitable for installations where mounting space is limited. Its four-row recirculating ball arrangement is designed to distribute loads across the bearing contact points and support linear movement under appropriate operating conditions. This configuration makes the carriage suitable for various industrial applications, including machine tools, automated production equipment, material-handling systems, and precision positioning machinery.
Designed for integration into industrial linear-motion systems, the KWVE20-B-S-V1-T11 Linear Bearing can be considered for CNC machinery, robotic equipment, automated assembly systems, transfer mechanisms, and precision positioning applications. Its compact dimensions and recirculating ball design make it a practical option for machinery that requires guided movement along a straight path. Final suitability must be determined from the complete technical specifications and the operating requirements of the equipment.
At Rewaltech Engineering, KWVE20-B-S-V1-T11 Linear Bearing listing is intended to help industrial buyers, maintenance teams, machine builders, and automation professionals identify the linear guide carriage they require. Whether the component is being considered for replacement, equipment maintenance, or a new machinery project, confirming the complete part number and technical documentation helps ensure a more reliable purchasing decision.
KWVE20-B-S-V1-T11 Linear Bearing – Key Specifications
| Specification | Details |
|---|---|
| Model Number | KWVE20-B-S-V1-T11 |
| Manufacturer | INA / Schaeffler |
| Product Series | KWVE20 |
| Product Type | Recirculating Ball Bearing Carriage |
| Carriage Design | Narrow carriage |
| Ball Circulation | Four-row |
| Size | 20 |
| Preload | V1 – Slight preload, as supplied |
| Compatible Guideway Size | 20 mm; confirm exact rail compatibility |
| Carriage Width (B) | 44 mm |
| Carriage Length (L) | 71.4 mm |
| System Height (H) | 30 mm |
| Dynamic Load Rating (C) | 13,100 N |
| Static Load Rating (C₀) | 27,000 N |
| Static Moment Rating M₀x | 332 Nm |
| Static Moment Rating M₀y | 240 Nm |
| Static Moment Rating M₀z | 240 Nm |
| Approximate Weight | 0.34 kg |
| Material | Steel, as supplied |
| Seal Configuration | Standard KWVE20-B-S version stated as without seals; verify suffix |
| Accuracy Class | Confirm against the complete part number |
| Guide Rail | Separate unless explicitly included |
| Feature | Benefit |
|---|---|
| Four-row recirculating ball design | Supports controlled linear movement in compatible guide systems |
| Narrow carriage configuration | Helps accommodate space-constrained machinery layouts |
| Size 20 format | Suitable for compatible size 20 linear guidance systems |
| V1 slight preload | Helps control internal clearance and support rigidity |
| 13,100 N dynamic load rating | Provides a reference for evaluating dynamic loading requirements |
| 27,000 N static load rating | Provides a reference for evaluating stationary or static loading |
| Compact 44 mm width | Supports space-efficient mounting arrangements |
| 71.4 mm carriage length | Helps designers assess installation and mounting space |
| Precision linear guidance | Suitable for applications requiring repeatable movement |
| INA / Schaeffler product identification | Helps buyers identify the intended manufacturer and product family |
| Multiple configuration options across the series | Allows selection based on the required application, subject to availability |
| Industrial linear-motion design | Supports integration into compatible automation and machinery systems |
| Application | Purpose |
|---|---|
| Industrial automation | Guided movement within automated equipment |
| CNC machinery | Linear positioning of compatible machine assemblies |
| Linear transfer systems | Movement of components between production stations |
| Robotic equipment | Guided motion in compatible robotic mechanisms |
| Pick-and-place machines | Repeatable movement during handling operations |
| Assembly machinery | Controlled positioning of machine components |
| Automated production lines | Linear movement within production equipment |
| Machine tools | Guidance for compatible moving assemblies |
| Precision positioning equipment | Controlled travel along a linear axis |
| Material-handling machinery | Guided movement of handling mechanisms |
| Linear actuator systems | Support for compatible guided actuator arrangements |
| Manufacturing equipment | Linear guidance for industrial machine assemblies |
📦 What’s Included
- KWVE20-B-S-V1-T11 Linear Bearing, as specified in the supplied listing.
💰 Price Note: The price of the INA / Schaeffler KWVE20-B-S-V1-T11 Linear Bearing may fluctuate depending on market conditions, supplier availability, exchange rates, import duties, and shipping costs. Please contact Rewaltech Engineering for the latest price and availability before placing your order.
