LAPP 1136307 Cable CY 1.5 mm² 6+E Reliable and Flexible | Rewaltech
$ 6.38
About this item
Supply of LAPP 1136307 Cable, featuring seven conductors, including protective earth, PVC insulation, a grey outer sheath, and tinned-copper braid shielding. Suitable for compatible industrial control and automation applications. Country of origin and final price are subject to supplier confirmation.
Worldwide Shipping
Free shipping on orders over $500
Fast Shipping
1-3 dispatch on all the orders
Original Products
100% genuine industrial parts
30 Days Moneyback
Hassle-free returns & refunds
📝 Product Overview

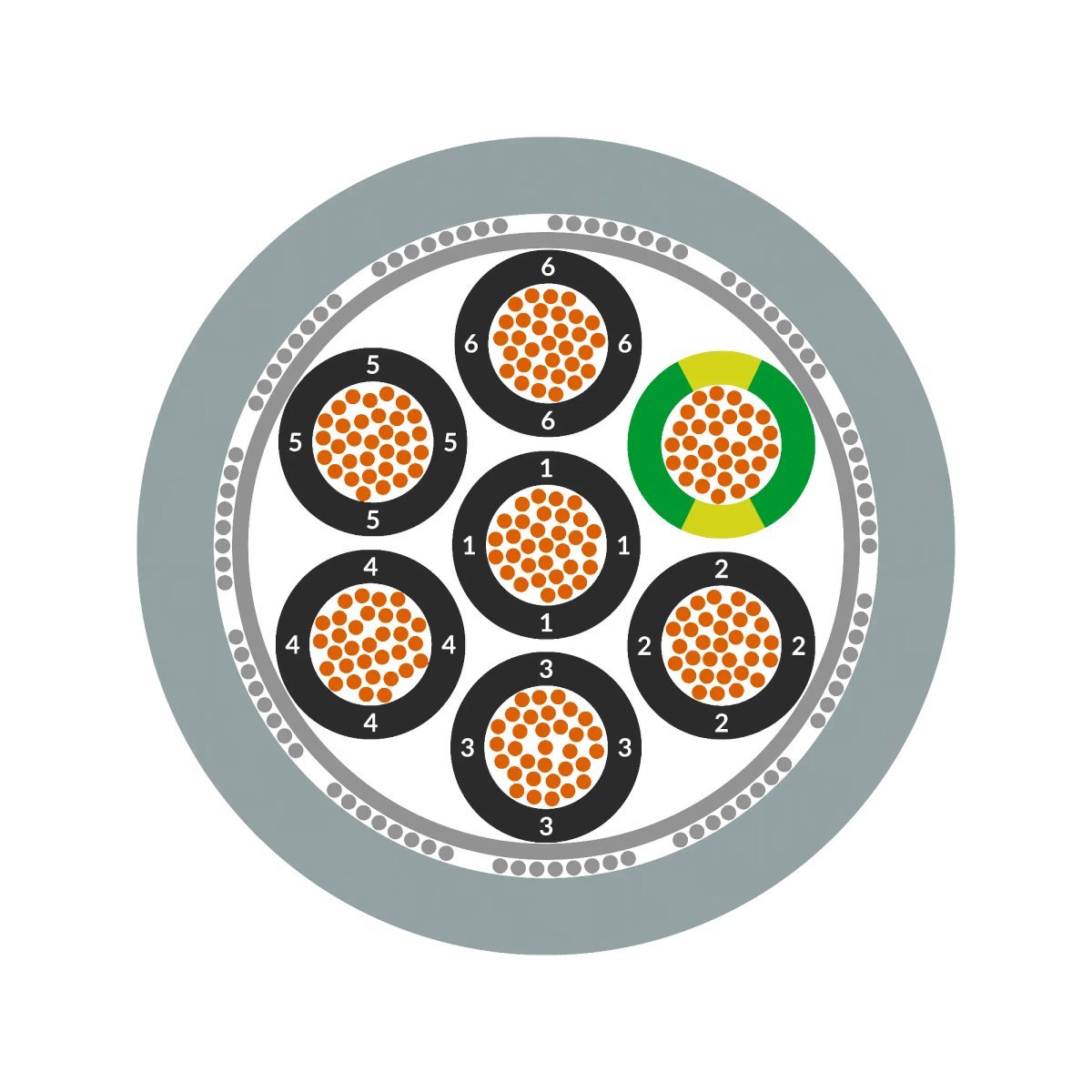

The LAPP 1136307 Cable is a screened industrial power and control cable designed for electrical connections in machinery, automation systems, and industrial control installations. Its seven-core configuration includes six functional conductors and one protective earth conductor, corresponding to the requested 6+E configuration.
Manufactured within LAPP’s ÖLFLEX® CLASSIC 115 CY product range, this LAPP 1136307 Cable is designed for applications that require flexible wiring and protection against electromagnetic interference (EMI). The overall screening consists of a tinned-copper braiding beneath the outer sheath, helping reduce electrical interference when the cable is installed and screened correctly.

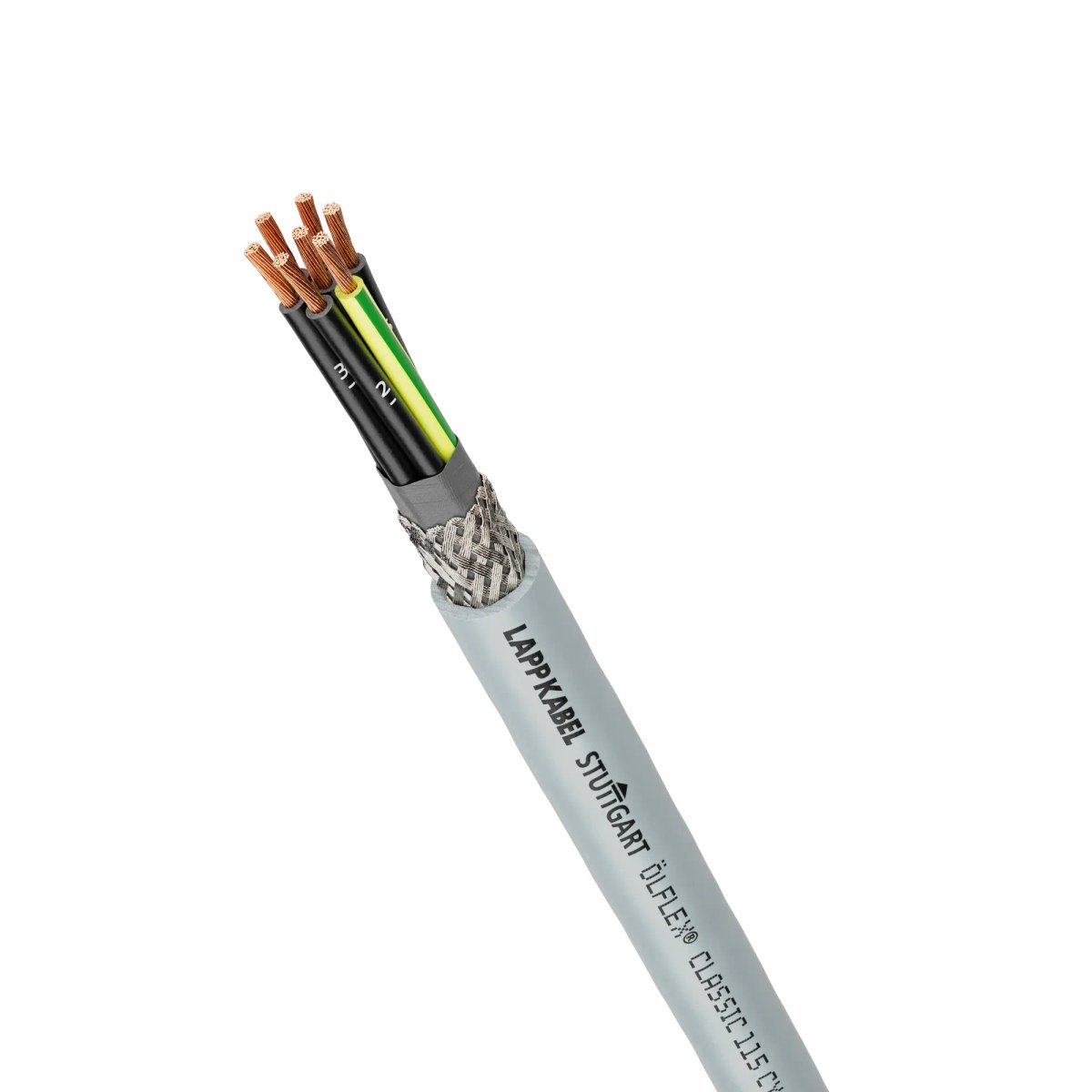

The LAPP 1136307 Cable features fine-stranded bare copper conductors, PVC insulation, numbered cores, and a grey PVC outer sheath. Its nominal voltage rating is 300/500 V, and its listed outer diameter is approximately 9.9 mm. These characteristics make it suitable for consideration in compatible industrial control and power-wiring applications.
The seven-core arrangement allows multiple circuit connections to be routed through one cable while retaining a dedicated protective earth conductor. The protective earth must be connected according to the electrical design and must not be used as an ordinary signal conductor. The numbered core identification helps technicians identify conductors during installation, inspection, and maintenance.
The PVC outer sheath provides protection for suitable industrial environments, and the product documentation describes chemical resistance under specified conditions. Actual suitability depends on the chemicals, temperatures, mechanical stresses, and environmental exposure present at the installation site.
For procurement teams, panel builders, maintenance engineers, and automation integrators, LAPP 1136307 Cable provides a clearly identified screened cable option for applications requiring six conductors plus protective earth. Before ordering, confirm the complete article number, required length, conductor configuration, voltage rating, and compatibility with the intended installation.
LAPP 1136307 Cable _ Key Specifications
| Specification | Details |
|---|---|
| Brand | LAPP |
| Product Series | ÖLFLEX® CLASSIC 115 CY |
| Part Number | 1136307 |
| Cable Configuration | 7G1.5 mm² (6+E) |
| Number of Conductors | 7, including protective earth |
| Conductor Cross-Section | 1.5 mm² per conductor |
| Conductor Material | Fine-stranded bare copper |
| Insulation | PVC |
| Outer Sheath | Grey PVC |
| Shielding | Tinned-copper braid |
| Nominal Voltage | 300/500 V |
| Nominal Outer Diameter | Approximately 9.9 mm |
| Core Identification | Numbered cores |
| Typical Use | Industrial power and control wiring |
| Country of Origin | China, as requested; confirm with supplier |
| Feature | Benefit |
|---|---|
| 1.5 mm² copper conductors | Supports appropriately rated electrical circuits |
| 6+E configuration | Provides six circuit conductors and one protective earth conductor |
| Tinned-copper braid shielding | Helps reduce electromagnetic interference |
| Flexible stranded conductors | Facilitates installation and occasional movement |
| Numbered cores | Simplifies conductor identification |
| PVC insulation and outer sheath | Provides insulation and protection in suitable environments |
| Compact cable design | Helps optimize installation space |
| Industrial control-cable construction | Supports compatible automation and machinery applications |
| Application | Purpose |
|---|---|
| Industrial automation | Control and electrical connections |
| Electrical control panels | Wiring for compatible control systems |
| Manufacturing machinery | Connecting electrical components |
| Measurement and control technology | Screened signal and control wiring |
| HVAC systems | Control connections in suitable installations |
| Plant engineering | Industrial electrical installations |
| Factory automation | Connections between automation equipment |
| EMC-sensitive environments | Screened wiring where electromagnetic compatibility is required |
📦 What’s Included
- LAPP 1136307 Cable.
-
Cable length and quantity as specified in the purchase order.
-
Country of origin documentation, subject to supplier confirmation.
Price Note: The price of LAPP 1136307 Cable, may fluctuate depending on cable length, order quantity, supplier availability, copper prices, exchange rates, shipping costs, and applicable taxes and duties. Please contact Rewaltech Engineering for the latest price and a formal quotation. Country of origin should be confirmed before ordering.
