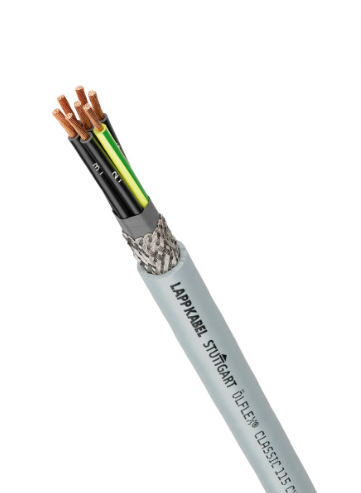

LAPP 1136638 4G35 Cable Reliable, High-Performance and Flexible| Rewaltech
$ 68.00
About this item
The LAPP 1136638 4G35 Cable a flexible, shielded industrial power and control cable featuring four 35 mm² copper conductors in a 3+E configuration. With a 300/500 V AC rating, PVC insulation, a grey outer sheath, and tinned-copper screening braid, it is designed for compatible industrial machinery, plant engineering, and control installations.
Worldwide Shipping
Free shipping on orders over $500
Fast Shipping
1-3 dispatch on all the orders
Original Products
100% genuine industrial parts
30 Days Moneyback
Hassle-free returns & refunds
📝 Product Overview
The LAPP 1136638 4G35 Cable is a flexible, shielded power and control cable designed for industrial electrical installations, machinery, and control systems. It features four conductors, each with a nominal cross-sectional area of 35 mm², arranged in a 3+E configuration consisting of three conductors plus a protective earth conductor. LAPP identifies this product as a 300/500 V PVC-insulated cable with a grey outer sheath and numbered cores.
The LAPP 1136638 4G35 Cable uses Class 5 fine-wire bare copper conductors, providing flexibility for routing and installation in compatible machinery and electrical systems. Its four-core construction supports applications requiring three conductors and a protective earth connection. The 35 mm² conductor size makes it suitable for specified industrial power and control duties, subject to the installation design, current requirements, and applicable electrical regulations.
The LAPP 1136638 4G35 Cable has a nominal voltage rating of 300/500 V AC and a conductor-to-conductor test voltage of 4 kV. Its PVC core insulation and outer sheath provide electrical insulation and mechanical protection under the manufacturer’s specified conditions. The grey outer sheath and numbered core identification help electricians and maintenance technicians identify conductors during installation and servicing.
For industrial buyers, panel builders, maintenance teams, and machinery manufacturers, the LAPP 1136638 4G35 Cable is a suitable option to evaluate when a screened, flexible, four-core 35 mm² cable is required. It supports electrical installations where conductor identification, screening, and reliable routing are important.
Available through Rewaltech Engineering, this product should be ordered by its exact part number, 1136638. Before purchase, confirm the required cable length, the 3+E configuration, voltage rating, screening requirements, and installation conditions to ensure compatibility with the intended system.
LAPP 1136638 4G35 Cable_ Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | LAPP |
| Product Series | ÖLFLEX® CLASSIC 115 CY |
| Part Number | 1136638 |
| Model | 4G35 |
| Product Type | Shielded power and control cable |
| Cable Configuration | 3+E (3 conductors + protective earth) |
| Number of Cores | 4 |
| Conductor Cross-Section | 35 mm² per core |
| Conductor Material | Bare copper |
| Conductor Class | Class 5, fine-wire stranded |
| Rated Voltage | 300/500 V AC |
| Conductor-to-Conductor Test Voltage | 4 kV |
| Core Insulation | PVC |
| Outer Sheath | PVC |
| Outer Sheath Colour | Grey |
| Core Identification | Numbered |
| Shielding | Tinned-copper braiding |
| Approximate Outer Diameter | 28 mm |
| Approximate Copper Index | 1,576 kg/km |
| Approximate Cable Weight | 1,867 kg/km in the cited APAC listing |
| Fixed Installation Temperature | −40°C to +80°C |
| Occasional Movement Temperature | −5°C to +70°C; verify the applicable regional datasheet |
| Flame Retardancy | IEC 60332-1-2 |
| Installation Type | Fixed installation and occasional flexing without tensile strain |
| Continuous Flexing | Not specified for continuous flexing |
| Feature | Benefit |
|---|---|
| 35 mm² copper conductors | Supports compatible industrial power and control circuits. |
| 3+E configuration | Provides three conductors plus protective earth. |
| Class 5 stranded copper | Facilitates routing and installation. |
| Copper screening braid | Helps reduce electromagnetic interference. |
| PVC insulation and sheath | Provides electrical insulation and protection under specified conditions. |
| 300/500 V rating | Supports compatible low-voltage industrial installations. |
| Numbered cores | Simplifies conductor identification and maintenance. |
| Grey outer sheath | Supports visual identification of the cable type. |
| Flame-retardant construction | Meets the stated IEC 60332-1-2 flame-retardancy requirement. |
| Approximate 28 mm diameter | Helps with cable routing and enclosure planning. |
| Chemical resistance | Provides resistance to certain acids and alkaline solutions, subject to limitations. |
| LAPP product identification | Helps with ordering and replacement using part number 1136638. |
| Application | Purpose |
|---|---|
| Industrial machinery | Power and control connections in compatible equipment. |
| Factory automation | Cable connections for industrial automation installations. |
| Plant engineering | Electrical wiring in industrial plants. |
| Control cabinets | Suitable power and control connections. |
| Measurement and control technology | Screened connections in compatible systems. |
| Motor and drive installations | Suitable cable routing where ratings and installation conditions permit. |
| Heating and air-conditioning systems | Electrical connections in compatible equipment. |
| EMC-sensitive environments | Helps reduce electromagnetic interference through cable screening. |
| Industrial equipment wiring | Fixed installation and occasional movement without tensile strain. |
| Manufacturing facilities | Power and control wiring for compatible production equipment. |
📦 What’s Included
-
LAPP 1136638 4G35 Cable a Shielded Cable
-
Part Number: 1136638
-
Configuration: 3+E, 35 mm² per conductor
Price Note: The price of the LAPP 1136638 4G35 Cable may fluctuate depending on copper prices, cable length, supplier availability, exchange rates, and order quantity. Please contact Rewaltech Engineering for the latest quotation, availability, and delivery details before placing your order.
