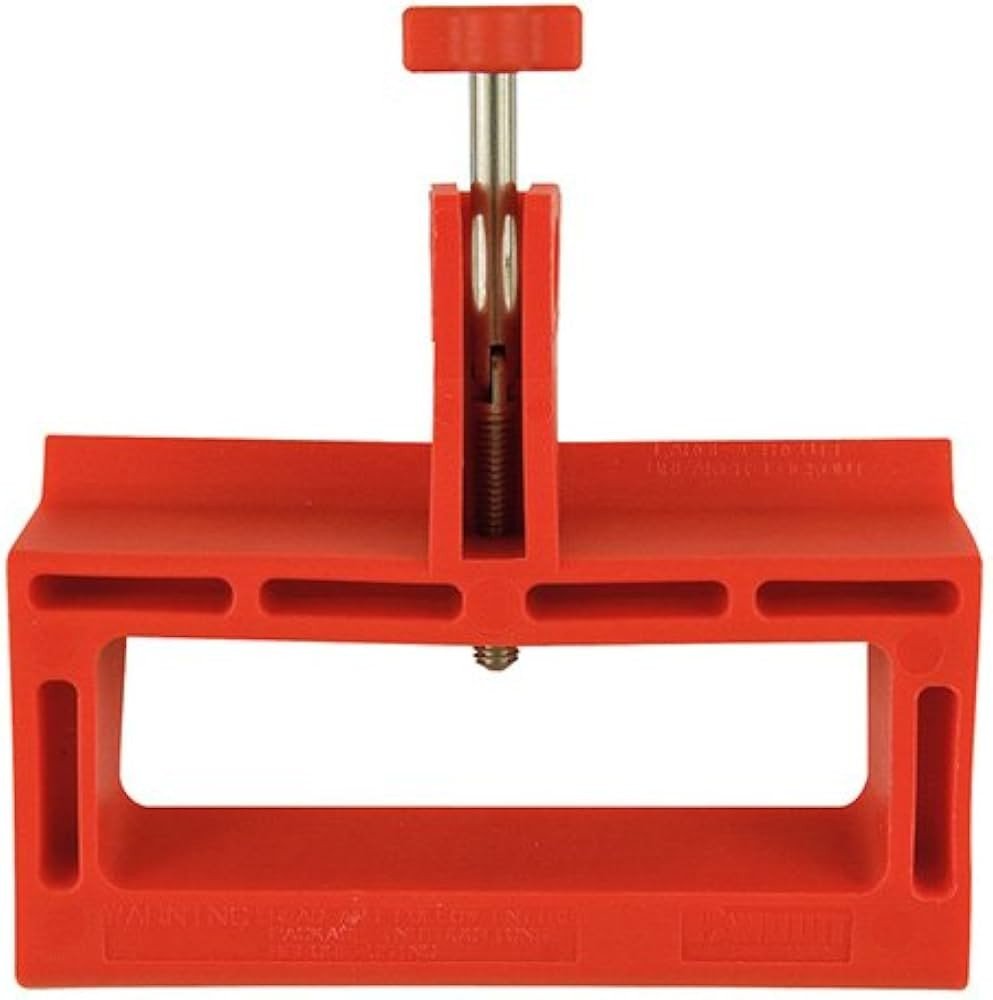

Panduit PSL-CBL –5 Durable Large Handle Circuit Breaker Lockout for LOTO Safety
$ 55.00
About this item
The Panduit PSL-CBL Large Handle Circuit Breaker Lockout is a durable, tool-free lockout device designed for compatible large molded-case circuit breakers (MCCBs). Featuring a universal-style design, nylon and stainless-steel construction, a visible red body, and single-padlock capability, it supports lockout/tagout (LOTO) procedures in industrial electrical panels, motor control systems, power distribution equipment, and manufacturing facilities.
Worldwide Shipping
Free shipping on orders over $500
Fast Shipping
1-3 dispatch on all the orders
Original Products
100% genuine industrial parts
30 Days Moneyback
Hassle-free returns & refunds
📝 Product Overview
The Panduit PSL-CBL Large Handle Circuit Breaker Lockout is a durable electrical safety device designed to secure compatible large molded-case circuit breakers (MCCBs) during maintenance, servicing, and repair operations. Part of the Panduit PSL lockout/tagout (LOTO) range, this device helps prevent unauthorized or accidental operation of compatible circuit breakers while authorized personnel carry out electrical maintenance procedures.
Designed specifically for large breaker handles, the Panduit PSL-CBL features a universal-style configuration that accommodates compatible molded-case circuit breakers used in industrial electrical installations, including certain 480/600 V applications. Its practical design allows installation by hand without additional tools, helping maintenance technicians and electricians apply lockout devices efficiently during routine servicing and equipment shutdown procedures.
The Panduit PSL-CBL is designed to accommodate breaker handles up to 0.80 inches (20.32 mm) thick and 3.00 inches (76.20 mm) wide, subject to the manufacturer’s compatibility requirements. These dimensions make it suitable for selected large breaker handles that may not accept smaller, conventional circuit breaker lockout devices. Always check the specific breaker model, handle geometry, and available clearance before installation.
Constructed from nylon and stainless-steel components, the Panduit PSL-CBL combines a practical, durable design with materials selected for strength and corrosion resistance. Its visible red body helps maintenance personnel identify the lockout device during electrical servicing and energy-control activities. The compact form also supports use in compatible electrical panels, power distribution installations, motor control systems, and industrial equipment.
The device supports the application of one padlock, helping an authorized worker secure a compatible circuit breaker in the required position as part of an established LOTO procedure. Its tool-free installation and design that does not require modification of the breaker or electrical panel help simplify the lockout process.
The Panduit PSL-CBL is suitable for industrial facilities where reliable energy-control procedures are essential. Typical applications include large MCCB lockout, electrical panel maintenance, manufacturing equipment servicing, motor control panels, power distribution systems, and industrial automation installations. It can support electrical maintenance procedures involving compatible breakers used in 480/600 V systems.
For safe use, the Panduit PSL-CBL must be installed according to the manufacturer’s instructions and used as part of an approved energy-control program. Applying a lockout device alone does not establish an electrically safe work condition; authorized personnel must follow the required isolation procedures and verify the absence of hazardous voltage before working on electrical equipment.
Specifications Details : Panduit PSL-CBL
| Specification | Details |
|---|---|
| Manufacturer | Panduit |
| Model | PSL-CBL |
| Product Type | Large Handle Circuit Breaker Lockout |
| Lockout Application | MCCB / Large Molded-Case Circuit Breaker |
| Series | PSL |
| Type | Large-Handle Universal |
| Suitable For | Compatible large molded-case circuit breakers |
| Typical Breaker Voltage | 480/600 V AC applications, subject to compatibility |
| Maximum Breaker Handle Thickness | 0.80 in (20.32 mm) |
| Maximum Breaker Handle Width | 3.00 in (76.20 mm) |
| Material | Nylon / Stainless Steel |
| Color | Red |
| Maximum Padlocks | 1 |
| Installation | Hand-operated; no tools required |
| Dimensions | Approximately 3.75 × 2.24 in (95.2 × 56.8 mm), as supplied |
| Height | Approximately 57 mm |
| Width | Approximately 77.4 mm |
| Depth | Approximately 20.32 mm |
| Standard/Reference | OSHA 1910.147, as a relevant LOTO reference |
| Packaging | 1 piece per package |
| Feature | Benefit |
|---|---|
| Large MCCB Compatibility | Designed for selected large molded-case circuit breakers, including compatible 480/600 V applications. |
| Universal-Style Design | Accommodates compatible breaker handles up to the specified maximum dimensions. |
| Tool-Free Installation | Allows convenient hand installation without additional tools. |
| Durable Construction | Nylon and stainless-steel components provide strength and corrosion resistance. |
| No Breaker Modification | Installs without requiring modifications to the breaker or electrical panel. |
| Visible Red Design | Makes the lockout device easier to identify during maintenance activities. |
| Single-Padlock Capability | Allows one padlock to secure the compatible breaker as part of a LOTO procedure. |
| Application | Purpose |
|---|---|
| Large MCCB Lockout | Helps secure compatible large molded-case circuit breakers during maintenance. |
| Electrical Panel Maintenance | Supports controlled isolation procedures for electrical panels. |
| Industrial LOTO Procedures | Provides a physical lockout point for compatible breakers. |
| Energy Isolation | Helps prevent unintended operation of a locked-out breaker. |
| Manufacturing Equipment | Supports energy-control procedures during equipment servicing. |
| Motor Control Panels | Helps secure compatible breakers during maintenance work. |
| Power Distribution Systems | Supports lockout procedures for suitable distribution equipment. |
| Industrial Automation | Assists with energy-control procedures for compatible electrical installations. |
| Electrical Maintenance | Supports authorized servicing and repair activities. |
| 480/600 V Breaker Isolation | Suitable for compatible breaker handles in relevant voltage applications. |
| Machine Servicing and Maintenance | Helps prevent accidental breaker operation during approved maintenance procedures. |
📦 What’s Included
- Panduit PSL-CBL Large Handle Circuit Breaker Lockout
