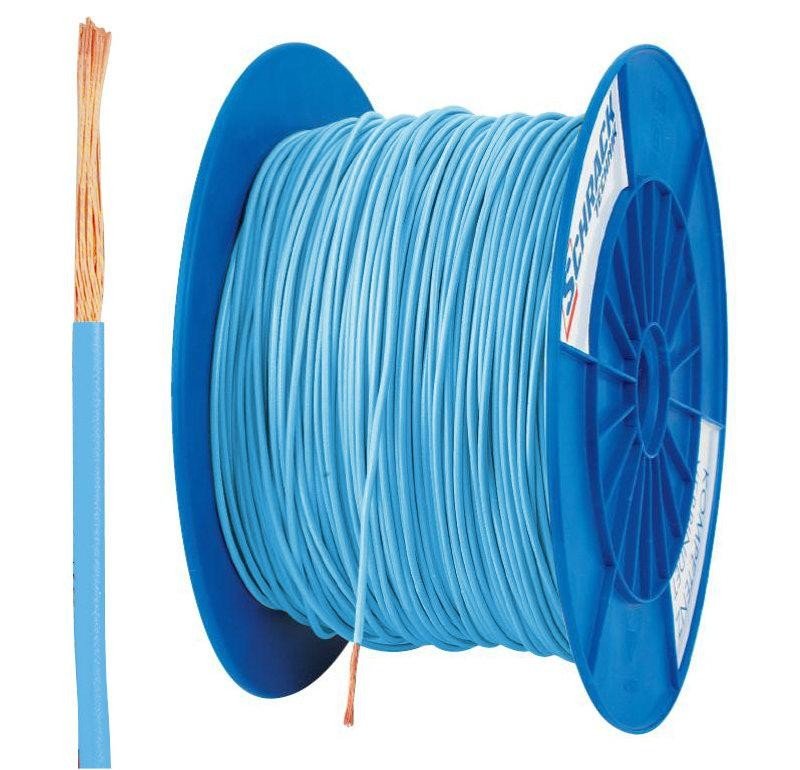

LAPP 39110221 Cable Light Blue 2.5mm² H07V-K Reliable and Flexible
$ 400.00
About this item
The LAPP 39110221 Cable is a flexible, single-core electrical wire with a stranded copper conductor and PVC insulation. Designed for compatible control panels, distribution boards, machinery wiring, and electrical equipment, it supports organised installation and easy conductor identification.
Worldwide Shipping
Free shipping on orders over $500
Fast Shipping
1-3 dispatch on all the orders
Original Products
100% genuine industrial parts
30 Days Moneyback
Hassle-free returns & refunds
📝 Product Overview
The LAPP 39110221 Cable Light Blue is a single-core flexible electrical wire designed for internal wiring, electrical control panels, and compatible industrial and commercial electrical installations. Featuring a nominal conductor cross-section of 2.5 mm² and light blue PVC insulation, this cable is suitable for wiring applications where flexible routing and clear conductor identification are important.
The LAPP 39110221 Cable is identified in the supplied product description as part of the 60227 IEC 02 (RV) / H07V-K cable family. This type of wire is commonly used inside electrical enclosures, distribution boards, machinery control cabinets, and equipment assemblies, subject to the applicable installation requirements and manufacturer specifications.
Copper is widely used for electrical conductors because of its good electrical conductivity. The conductor cross-section of 2.5 mm² can be suitable for a variety of wiring circuits, but the allowable current depends on installation conditions, ambient temperature, grouping, protective devices, and applicable electrical regulations. The wire should therefore be selected according to the circuit’s actual load and installation design.
PVC insulation provides electrical separation between the copper conductor and surrounding components. It also helps protect the conductor during normal handling and installation. For dependable service, the insulation must remain intact and the cable must be used within its specified voltage, temperature, and environmental limits.
The LAPP 39110221 Cable can be considered for applications involving internal equipment wiring and compatible fixed electrical installations. Before installation, users should confirm conductor size, insulation rating, operating temperature, current-carrying requirements, terminal compatibility, and the relevant product approvals.
Because the cable has a single insulated conductor, it does not provide a complete multi-core circuit by itself. Additional conductors and appropriate protective measures are needed according to the circuit design. Correct stripping tools, compatible terminals, suitable cable routing, and compliance with electrical safety requirements are important for a reliable installation.
Rewaltech Engineering can list this product for customers seeking LAPP electrical wiring materials. Before purchasing, confirm the exact article number, colour, available length, current technical datasheet, and stock availability. The LAPP 39110221 Cable suitability must be assessed against the requirements of the specific installation.
LAPP 39110221 Cable – Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | LAPP |
| Product Series | 60227 IEC 02 (RV) / H07V-K |
| Model / Article Number | 39110221 |
| Cable Type | Single-core flexible PVC-insulated wire |
| Conductor Size | 1 × 2.5 mm² |
| Number of Cores | 1 |
| Conductor Material | Bare fine-stranded copper |
| Conductor Class | Class 5, IEC 60228 |
| Insulation Material | PVC |
| Insulation Colour | Light Blue |
| Rated Voltage | 450/750 V AC |
| Test Voltage | 2.5 kV |
| Approx. Outer Diameter | 3.7 mm |
| Approx. Copper Index | 24 kg/km |
| Approx. Cable Weight | 40 kg/km |
| Temperature Range | Confirm against the exact manufacturer’s datasheet |
| Standard | 60227 IEC 02 (RV) / H07V-K, as supplied |
⚙️ Technical Performance
| Parameter | Description |
|---|---|
| Conductor Flexibility | Fine-stranded construction supports easier routing |
| Electrical Conductivity | Copper conductor supports effective electrical current transmission |
| Insulation Protection | PVC insulation provides electrical separation |
| Colour Identification | Light blue helps identify the conductor in accordance with the applicable wiring convention |
| Installation | Suitable for compatible equipment and panel wiring |
| Bending Capability | Flexible wire construction helps with routing through ducts and enclosures |
| Operating Conditions | Must remain within the manufacturer’s specified voltage and temperature limits |
| Feature | Benefit |
|---|---|
| Flexible copper conductor | Helps simplify wiring and installation |
| 2.5 mm² cross-section | Suitable for appropriately designed electrical circuits |
| Light blue insulation | Supports conductor identification |
| PVC insulation | Provides electrical insulation for normal operating conditions |
| Single-core design | Allows individual circuit connections |
| Compact construction | Helps organise wiring in control cabinets |
| H07V-K / RV designation | Helps identify the intended wire family |
| Industrial wiring suitability | Supports compatible panel and equipment wiring applications |
| Application | Purpose |
|---|---|
| Electrical control cabinets | Internal connections between components |
| PLC and automation panels | Suitable control-panel wiring |
| Distribution boards | Individual circuit wiring where permitted |
| Neutral conductor wiring | Identification and connection where the wiring design requires it |
| Industrial machinery | Internal equipment connections |
| Cable ducts and conduits | Organised routing of individual wires |
| Factory automation | Wiring within compatible electrical assemblies |
| Electrical equipment | Internal wiring subject to manufacturer specifications |
📦 What’s Included
- LAPP 39110221 Cable
-
Article number: 39110221
-
Configuration: 1 × 2.5 mm², single core
-
Insulation colour: Light blue
-
Supply length: To be confirmed when ordering
- Manufacturer datasheet: Subject to availability
💰 Price Note : LAPP 39110221 Cable Prices may fluctuate due to market conditions, copper prices, exchange rates, stock availability, order quantity, and required cable length. Contact Rewaltech Engineering for the latest price and quotation.
