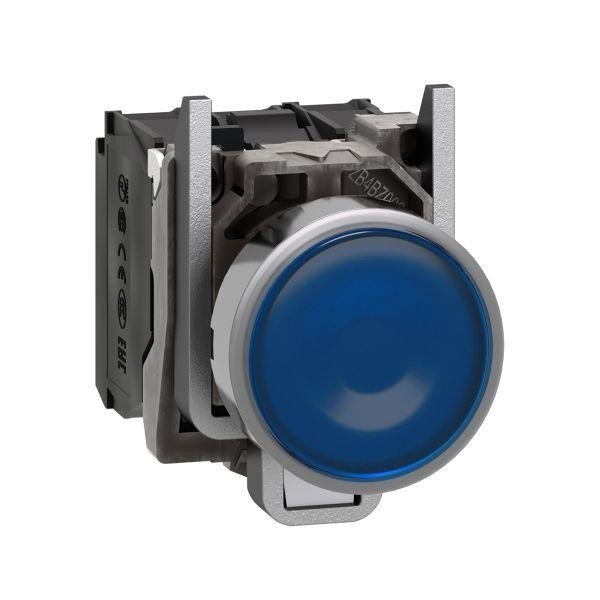

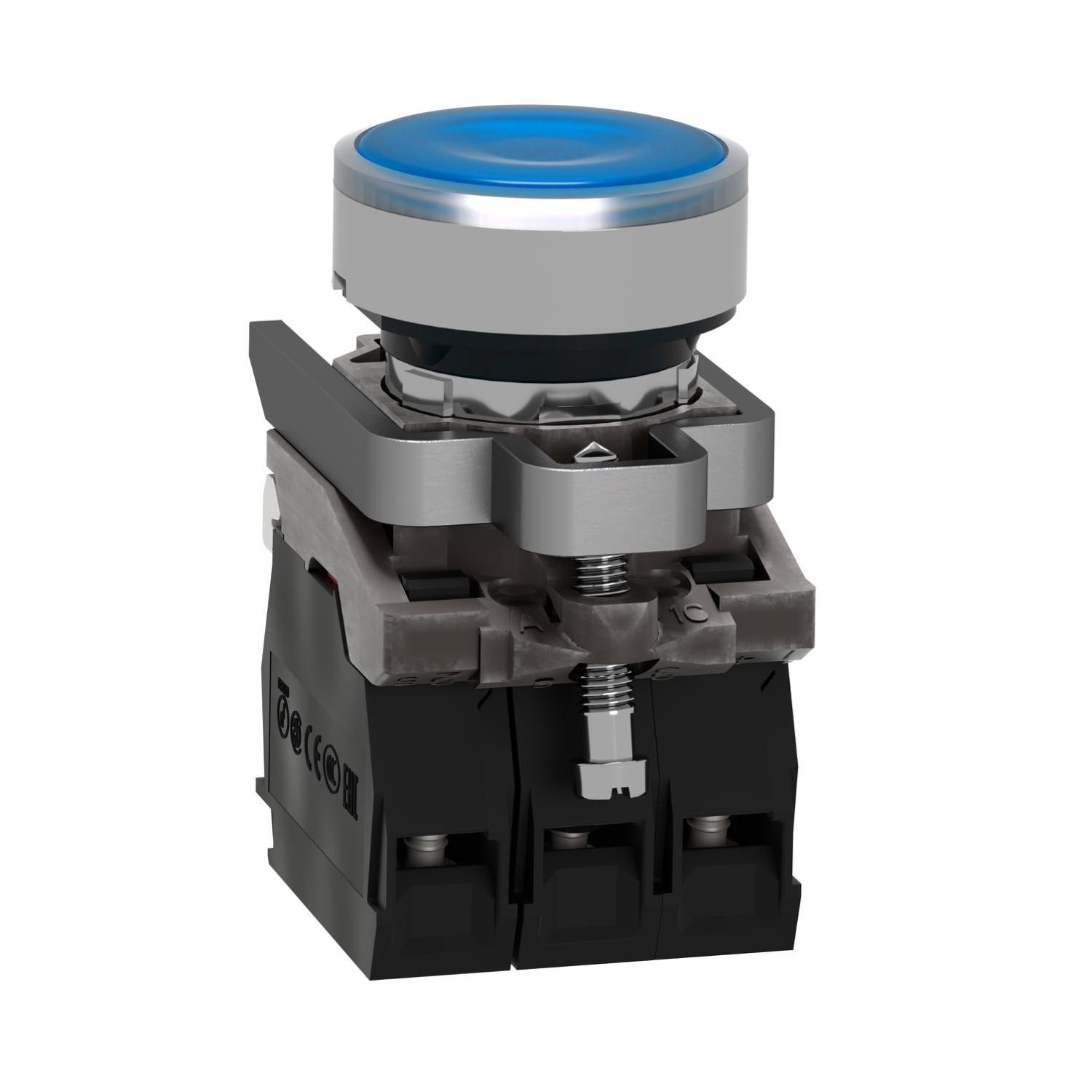

Schneider Electric XB4BW36B5 Push Button – Blue , Reliable, Durable 24V AC/DC

Limited time deal

$ 42.00

About this item

The Schneider Electric XB4BW36B5 Illuminated Push Button is a 22 mm Harmony XB4 series control device featuring a blue flush actuator, universal 24V AC/DC LED illumination, and 1NO + 1NC contacts. With a spring-return mechanism, chromium-plated metal bezel, and modular construction, it is suitable for compatible industrial control panels, machine stations, PLC automation systems, and manufacturing equipment.

Note: 🌍 International Shipping Available – We ship worldwide via DHL, FedEx, and UPS. Delivery times vary by destination. Contact us for expedited shipping options and real-time tracking.
Category:
Quantity
- +

Worldwide Shipping

Free shipping on orders over $500

Fast Shipping

1-3 dispatch on all the orders

Original Products

100% genuine industrial parts

30 Days Moneyback

Hassle-free returns & refunds

📝 Product Overview

The Schneider Electric XB4BW36B5 Push Button  is a high-quality industrial control component from the Harmony XB4 series, designed for dependable machine operation, operator interfaces, and industrial automation systems. Featuring a blue illuminated flush actuator, a 22 mm mounting format, and a universal 24V AC/DC LED module, this push button combines clear visual indication with practical control functionality for modern industrial environments.

Manufactured by Schneider Electric, the Schneider Electric XB4BW36B5 Push Button is designed for use in control panels, machine operating stations, manufacturing facilities, and process automation installations. Its illuminated actuator helps operators identify a control button quickly, particularly in environments where visual status indication improves usability. The blue illumination can be used for an application-specific command or indication, depending on the machine’s control design and applicable standards.

One of the key characteristics of the Schneider Electric XB4BW36B5 Blue Push Button is its flush actuator design. The actuator is intended to provide a clean, professional appearance on the front of a control panel while supporting convenient operation.

The Schneider Electric XB4BW36B5 Push Button is specified with a 1 Normally Open (1NO) + 1 Normally Closed (1NC) contact configuration. This arrangement provides two complementary switching paths for suitable control applications. The normally open contact can be used to initiate a command when the button is operated, while the normally closed contact can be used for an alternative control or signaling function, subject to the circuit design.

Schneider Electric XB4BW36B5 Illuminated Push Button– Key Specifications



Specification Details
Model Number XB4BW36B5
Manufacturer Schneider Electric
Product Series Harmony XB4
Product Type Illuminated Push Button
Mounting Diameter 22 mm
Typical Panel Cut-Out 22.5 mm
Actuator Colour Blue
Actuator Style Flush
Return Mechanism Spring return
Illumination Integrated universal LED
LED Supply Voltage 24V AC/DC
Contact Configuration 1 Normally Open (1NO) + 1 Normally Closed (1NC)
Contact Operation Slow-break
Bezel Material Chromium-plated metal
Terminal Type Screw clamp terminals
Protection Rating Up to IP66 / IP67 / IP69 / IP69K, subject to the exact configuration and correct installation
Mechanical Durability Up to 10 million operations, as specified
Standards IEC/EN 60947 compliance, as applicable to the product
Application Industrial machine and process control



Feature Benefit
Blue illuminated actuator Provides clear visual identification of the control button.
Universal 24V AC/DC LED module Supports compatible AC or DC control supplies at the specified voltage.
Flush actuator design Provides a neat, professional operator-panel appearance.
Spring-return mechanism Returns the actuator to its normal position after release.
1NO + 1NC contact configuration Supports complementary switching functions in suitable control circuits.
Chromium-plated metal bezel Provides a durable finish for industrial control panels.
22 mm mounting format Fits compatible industrial operator stations and panel cut-outs.
Modular construction Supports assembly and maintenance using compatible components.
Long mechanical durability Supports repeated manual operation under specified conditions.
Screw clamp terminals Provides a practical electrical connection method.
Harmony XB4 series Supports integration into compatible Schneider Electric operator-interface systems.
Multiple stated enclosure ratings Can support demanding environments when the exact assembly is correctly configured and rated.

Application Purpose
Industrial control panels Provides illuminated manual control for industrial equipment.
PLC automation systems Supplies operator commands to compatible control circuits.
Machine control stations Allows operators to initiate or manage machine functions.
Manufacturing equipment Supports manual operation on production machinery.
Packaging machinery Provides illuminated controls for packaging and processing equipment.
Conveyor systems Supports operator commands at conveyor control stations.
HVAC control panels Provides manual input for compatible heating, ventilation, and air-conditioning systems.
Motor control centres (MCCs) Provides operator-interface functions within appropriately designed panels.
Process automation Supports manual control functions in industrial process systems.
Factory automation Integrates into compatible machine and production-line interfaces.
Assembly lines Provides accessible illuminated operator controls.
Industrial machinery Supports momentary switching functions in suitable control circuits.
📦 What’s Included
  •  Schneider Electric XB4BW36B5 Push Button (Blue)
