📝 Product Overview

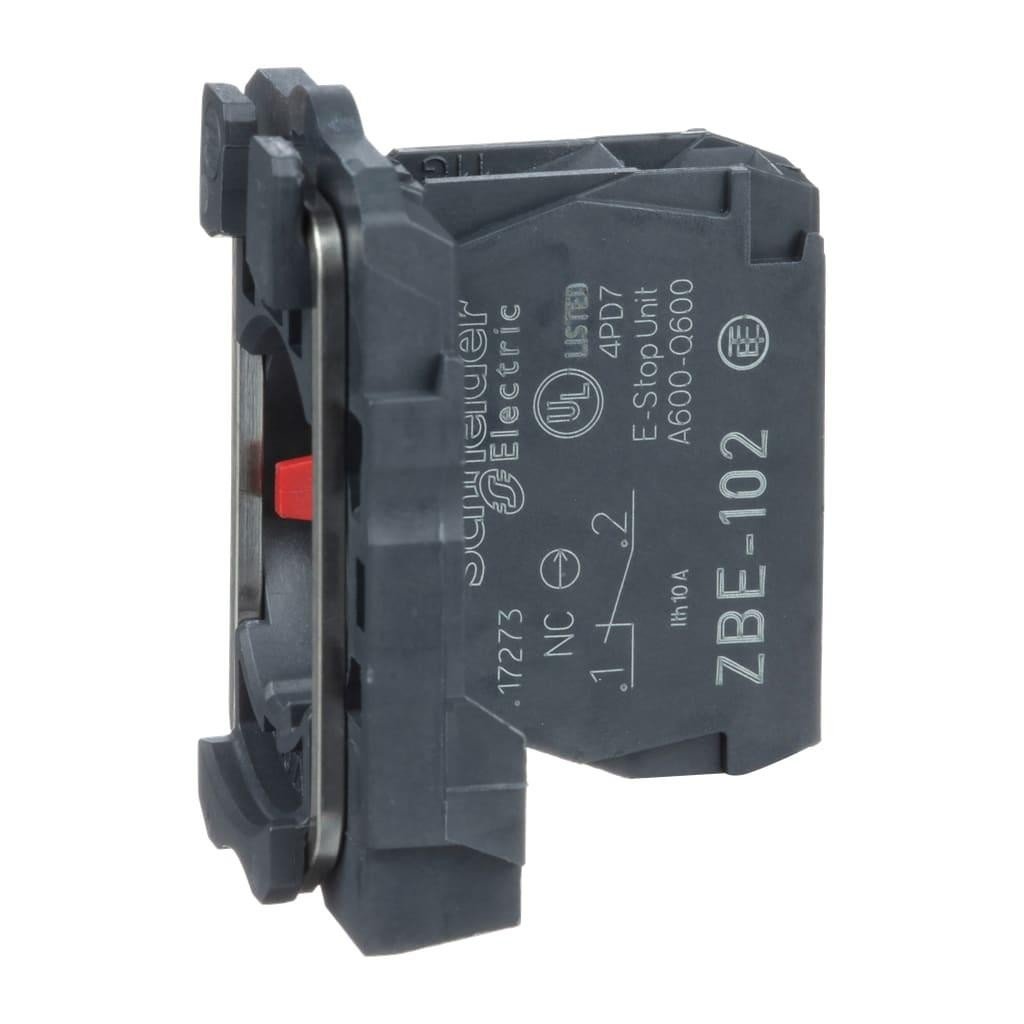

The Schneider Electric ZBE102 Push-Button Contact Block is a high-quality single Normally Closed (1NC) contact block designed for use with compatible Harmony XB4 and XB5 22 mm push buttons, selector switches, and pilot devices. Manufactured by Schneider Electric, this compact contact block provides dependable electrical switching for industrial control panels, machinery, automation systems, and other electrical equipment requiring reliable control-circuit operation.

Engineered for consistent switching performance, the Schneider Electric ZBE102 features slow-break contacts, a positive opening mechanism, and screw clamp terminals for secure electrical connections. Its Normally Closed contact configuration maintains electrical continuity in the normal, unactuated state and opens when the associated operating mechanism is actuated, subject to the device’s operating design. This functionality makes it suitable for control circuits that require normally closed contact operation.

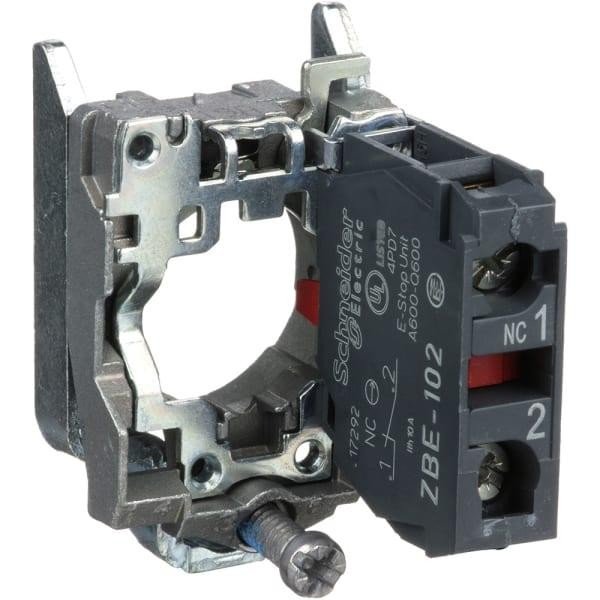

The Schneider Electric ZBE102 is part of Schneider Electric’s Harmony range, which is widely used in industrial operator-control applications. Its modular construction supports convenient installation and replacement in compatible assemblies. The snap-on mounting arrangement helps simplify assembly, while the screw clamp terminals provide a practical connection method for suitable control wiring.

With a rated thermal current of 10 A, a specified voltage rating of up to 600 V, and an IP20 protection rating, the Schneider Electric ZBE102 is designed for suitable electrical installations within its applicable operating limits. Its silver alloy contact material supports dependable electrical contact performance, while its mechanical durability is specified at up to 10 million operations under applicable manufacturer test conditions.

The positive opening mechanism is an important feature for applications where mechanically forced opening of normally closed contacts is required. However, the complete safety function depends on the correct selection, installation, wiring, and integration of the contact block with the associated control equipment and safety system.

The Schneider Electric ZBE102 is a practical component for machine control stations, PLC automation panels, motor control centers, packaging equipment, conveyor systems, and process automation installations. Its compact size, modular design, and reliable contact operation make it a useful choice for panel builders, maintenance technicians, electrical engineers, and industrial automation professionals.

Before purchasing or installing this contact block, verify compatibility with the exact Harmony XB4 or XB5 operating head, the manufacturer’s current technical documentation, and the electrical requirements of your application.

 Specifications Details : Schneider Electric ZBE102

📦 What’s Included

• Schneider Electric ZBE102 Push-Button Contact Block (1NC)
