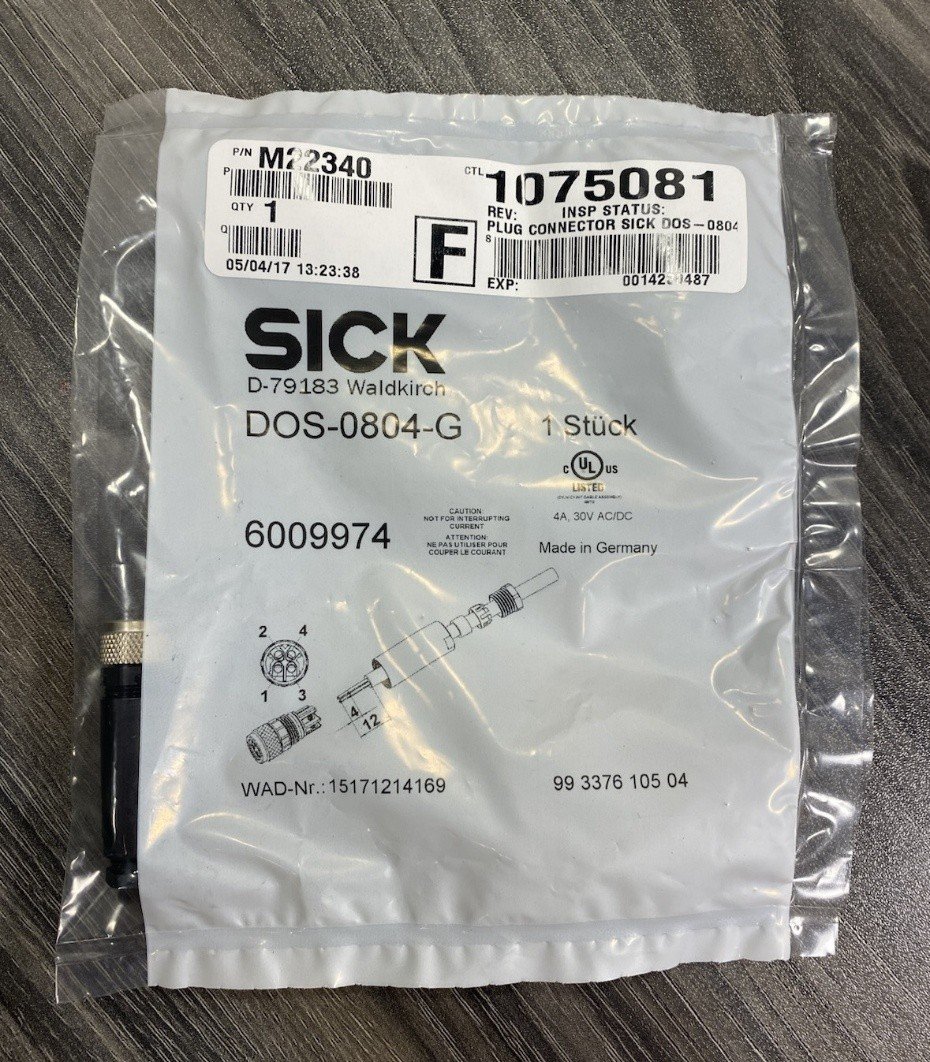

SICK DOS-0804-G M8 Female Straight Connector is a high-quality field-wireable sensor connector designed for reliable electrical connections in industrial automation systems. Featuring a 4-pin SICK DOS-0804-G M8 Female Straight Connector, this connector provides secure  stable signal transmission for sensors, actuators, and control devices. It is designed to provide a practical and dependable connection solution for industrial equipment where compact dimensions, reliable wiring, and durable construction are important requirements.

The SICK DOS-0804-G features a straight SICK DOS-0804-G M8 female connector design that allows compatible field devices to be connected conveniently in industrial installations. Its 4-pin A-coded configuration is suitable for compatible sensors, actuators, and other automation components that use SICK DOS-0804-G M8 connections.

Its field-wireable design provides flexibility during installation, maintenance, and machine assembly. Instead of requiring a permanently molded cable connection, compatible conductors can be terminated directly using the connector’s screw-type terminals. This makes the connector suitable for installations where cable lengths need to be customized or where field termination is required.

The screw-type terminal connection provides a secure and dependable method of connecting compatible conductors. This design allows suitable wires to be terminated directly inside the connector, making it convenient for industrial control and automation applications. The connector supports conductor cross sections from 0.14 mm² to 0.5 mm² and cable diameters from 3.5 mm to 5.0 mm, providing flexibility for compatible wiring requirements.

The SICK DOS-0804-G M8 is designed for demanding industrial environments where connectors can be exposed to dust, moisture, vibration, and changing temperatures. Its IP67 protection rating provides protection against dust ingress and temporary water immersion when the connector is correctly installed and connected. This makes it suitable for many factory automation and machine-building applications where environmental protection is required.

The connector has a rated voltage of ≤ 30 V and a current rating of ≤ 4 A, making it suitable for compatible low-voltage industrial sensor and actuator applications. Its operating temperature range of –40°C to +85°C allows it to be used across a wide range of industrial environments, including applications exposed to low or elevated ambient temperatures.

Specification of SICK DOS-0804-G

📦 What’s Included :

SICK DOS-0804-G M8 Female Straight Connectorsz
