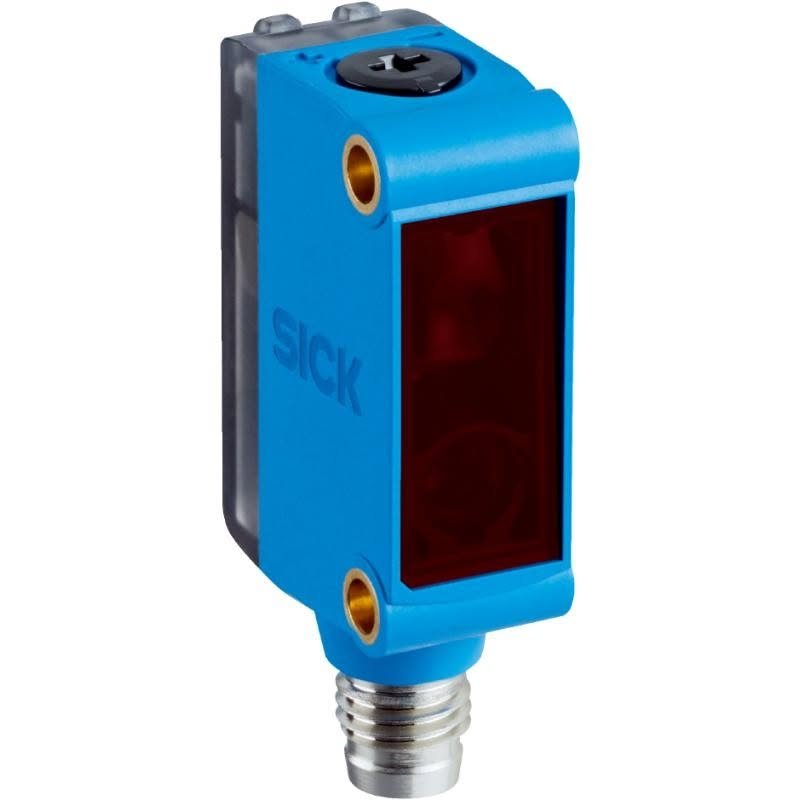

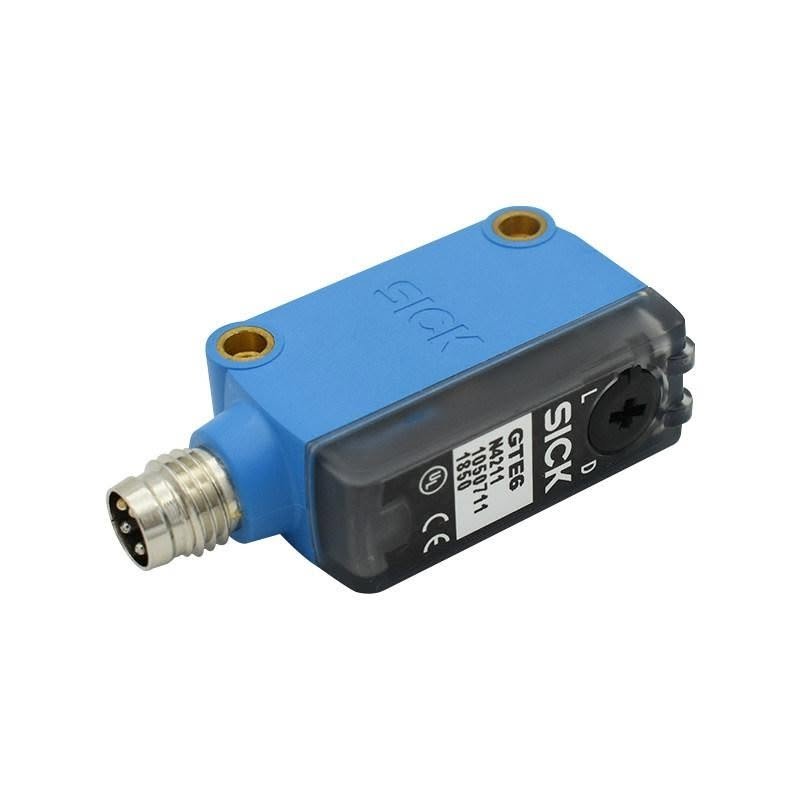

SICK GTE6-P4211 – High-Performance , Reliable ,300 mm Photoelectric Sensor | PNP
$ 110.00
About this item
The SICK GTE6-P4211 Photoelectric Sensor (1050710) is a compact G6 series sensor designed for reliable non-contact object detection in industrial automation. Featuring a PNP output, visible red PinPoint LED, sensing range of up to 300 mm, 10–30 V DC supply, fast 500 Hz switching, and IP67 protection, it is ideal for compatible conveyor systems, packaging machinery, assembly equipment, and PLC-based applications.
Worldwide Shipping
Free shipping on orders over $500
Fast Shipping
1-3 dispatch on all the orders
Original Products
100% genuine industrial parts
30 Days Moneyback
Hassle-free returns & refunds
📝 Product Overview
The SICK GTE6-P4211 Miniature Photoelectric Proximity Sensor (Part Number: 1050710) is a compact, high-performance industrial sensing device designed for reliable non-contact object detection in industrial automation and manufacturing applications. Part of the trusted SICK G6 series, this sensor combines a compact design, visible red Pin Point LED technology, and dependable switching performance to support accurate object detection in automated production environments.
Featuring an energetic photoelectric detection principle, the SICK GTE6-P4211 detects objects without requiring physical contact. Its maximum sensing range of up to 300 mm, with a specified sensing range of up to 250 mm as provided, makes it suitable for a variety of detection tasks. The visible red light source, operating at a wavelength of 650 nm, helps users align the sensor during installation and adjustment.
The SICK GTE6-P4211 also offers a fast response time of less than 1.25 ms, helping it detect object changes in time-sensitive applications. Its mechanical five-turn adjustment mechanism supports fine-tuning of the sensing range according to installation requirements.
The SICK GTE6-P4211 is a practical choice for industrial automation, conveyor systems, packaging machinery, assembly equipment, material handling, production lines, counting applications, and PLC-based sensing systems.
Specifications Details : SICK GTE6-P4211
| Specification | Details |
|---|---|
| Model Number | GTE6-P4211 |
| Manufacturer | SICK |
| Part Number | 1050710 |
| Product Series | G6 |
| Product Type | Miniature Photoelectric Sensor |
| Functional Principle | Photoelectric Proximity Sensor |
| Detection Principle | Energetic |
| Maximum Sensing Range | Up to 300 mm |
| Specified Sensing Range | Up to 250 mm, as provided |
| Light Source | PinPoint LED |
| Light Type | Visible Red Light |
| Wavelength | 650 nm |
| Light Spot | Approximately Ø 7 mm at 90 mm |
| Adjustment | Mechanical Spindle / 5-Turn Adjustment |
| Output Type | PNP |
| Switching Mode | Light/Dark Switching |
| Maximum Output Current | ≤ 100 mA |
| Switching Frequency | 500 Hz |
| Response Time | < 1.25 ms |
| Supply Voltage | 10–30 V DC |
| Current Consumption | ≤ 30 mA |
| Connection | M8 Male Connector, 4-Pin |
| Housing | Rectangular |
| Housing Material | ABS/PC |
| Protection Rating | IP67 |
| Protection Class | III |
| Dimensions (W × H × D) | 12 × 31.5 × 21 mm |
| Weight | Approximately 20 g |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Circuit Protection | Reverse-Polarity and Short-Circuit/Overcurrent Protection, as specified |
| Feature | Benefit |
|---|---|
| Compact G6 Miniature Design | Supports installation in space-constrained machinery and control systems. |
| Sensing Range up to 300 mm | Provides flexibility for compatible non-contact object detection tasks. |
| Visible PinPoint LED | Helps simplify sensor alignment during installation and maintenance. |
| Visible Red Light | Supports convenient adjustment and positioning. |
| PNP Switching Output | Allows integration with compatible PLCs and industrial control inputs. |
| Selectable Light/Dark Switching | Provides flexibility for different detection requirements. |
| Five-Turn Mechanical Adjustment | Supports fine adjustment of the sensing distance. |
| 500 Hz Switching Frequency | Supports fast detection in suitable automated processes. |
| Response Time Below 1.25 ms | Supports responsive detection of moving objects. |
| IP67 Protection Rating | Supports use in suitable dust- and water-exposure environments within the rating’s conditions. |
| M8 Four-Pin Connector | Supports convenient connection to compatible industrial wiring systems. |
| Circuit Protection | Helps protect the sensor against specified electrical fault conditions. |
| ABS/PC Housing | Provides a compact housing for industrial installation. |
| Application | Purpose |
|---|---|
| Industrial Automation | Detects objects in automated production and control processes. |
| Machine Automation | Supports object detection and machine sequencing. |
| Object Detection | Detects compatible targets without physical contact. |
| Part Presence Detection | Checks whether components are present at a designated position. |
| Conveyor Systems | Detects products moving along compatible conveyor installations. |
| Packaging Machinery | Supports product detection and packaging sequence control. |
| Assembly Machines | Helps detect components during automated assembly operations. |
| Material Handling | Supports object detection in handling and transfer systems. |
| Production Lines | Provides sensing for automated manufacturing processes. |
| Counting Applications | Supports counting when integrated with suitable control equipment. |
| Position Detection | Detects objects at defined positions within the sensing range. |
| Automated Manufacturing Equipment | Supports reliable sensing in industrial machinery. |
| PLC-Based Sensing Systems | Supplies switching signals to compatible PLC inputs. |
📦 What’s Included
- SICK GTE6-P4211 / 1050710 Miniature Photoelectric Sensor
