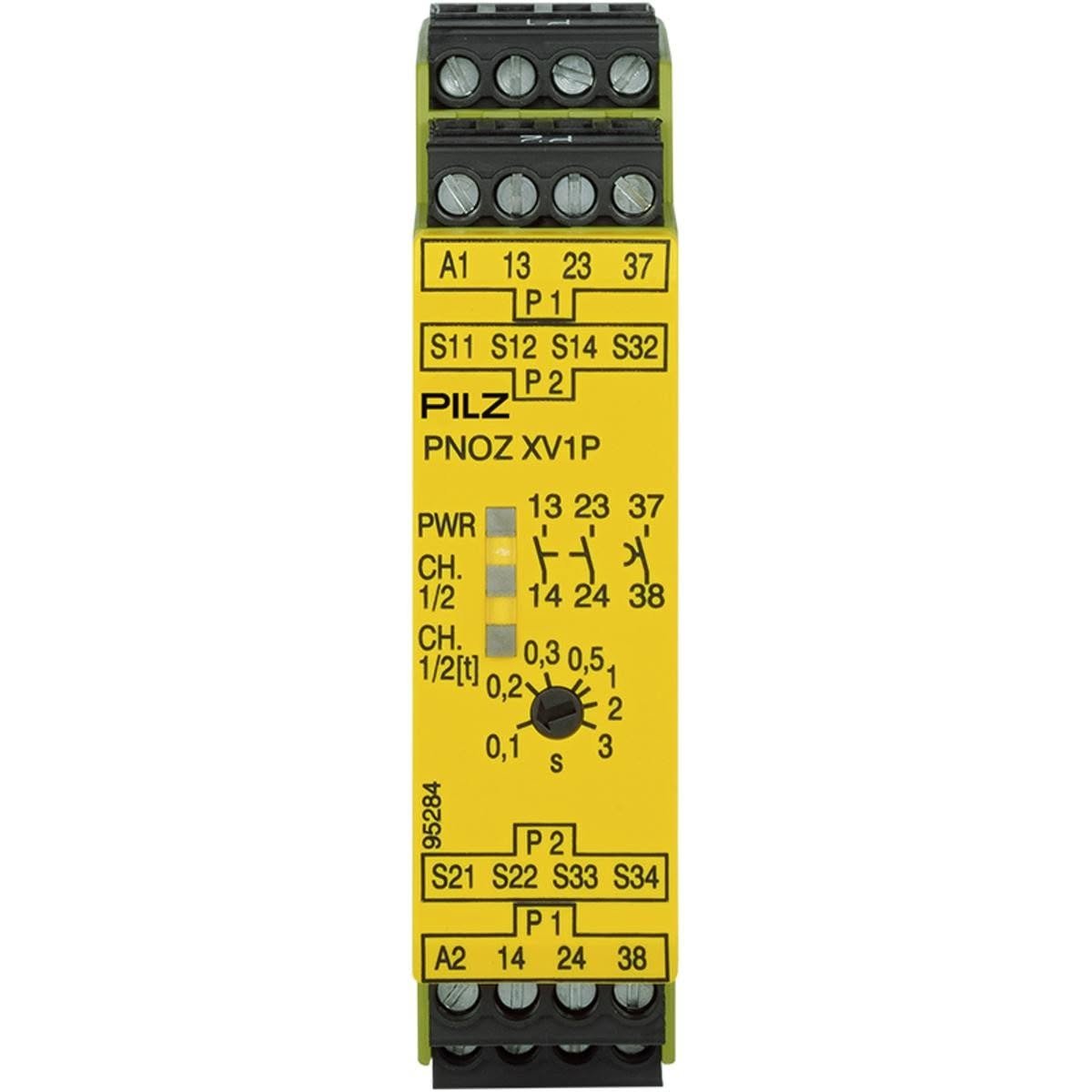

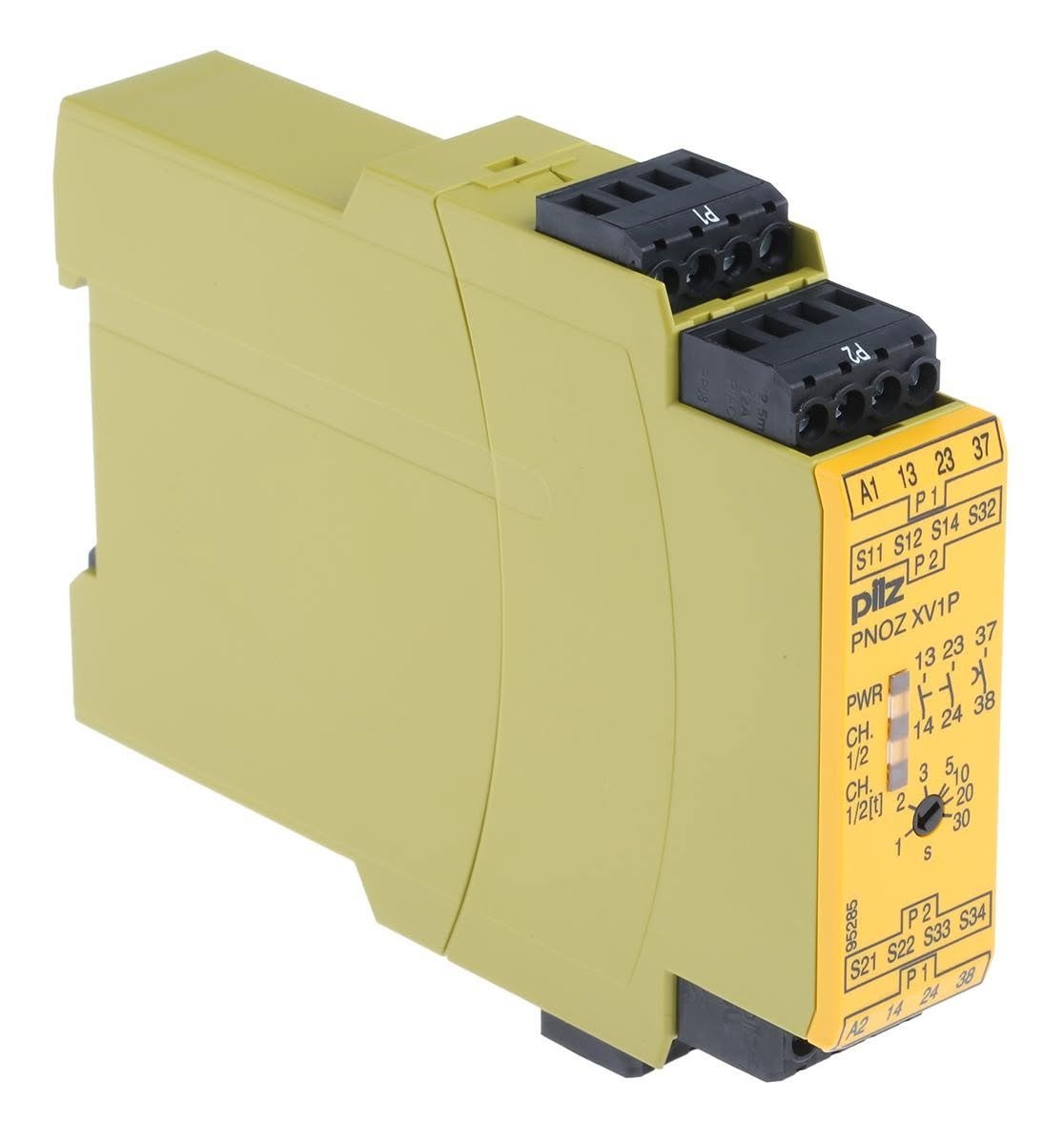

Pilz PNOZ XV1P 3/24VDC – Reliable , Advanced 24V DC Timed Safety Relay

Limited time deal

$ 330.00

About this item

The Pilz PNOZ XV1P 3/24VDC  is a compact 24 V DC safety relay from the PNOZ X-Series. Featuring two normally open safety contacts, one timed N/O contact, a selectable 0.1–3 second release time, and plug-in screw terminals, it is designed for compatible emergency-stop, safety-gate, and light-curtain monitoring applications.

Note: 🌍 International Shipping Available – We ship worldwide via DHL, FedEx, and UPS. Delivery times vary by destination. Contact us for expedited shipping options and real-time tracking.
Category:
Quantity
- +

Worldwide Shipping

Free shipping on orders over $500

Fast Shipping

1-3 dispatch on all the orders

Original Products

100% genuine industrial parts

30 Days Moneyback

Hassle-free returns & refunds

📝 Product Overview

The Pilz PNOZ XV1P 3/24VDC 2n/o 1n/o t Safety Relay (Product ID 777601) is an industrial safety monitoring relay designed to support safety-related control functions in machinery and automation systems. Part of the trusted Pilz PNOZ X-Series, this relay is intended for applications involving emergency-stop devices, safety gates, and light curtains where controlled machine shutdown and safety-circuit monitoring are essential.

Operating from a 24 V DC supply, the Pilz PNOZ XV1P 3/24VDC combines safety-related switching with a timed output function. Its output arrangement includes two normally open (N/O) safety contacts and one timed normally open contact, providing options for compatible safety-control circuit designs. The Pilz PNOZ XV1P is intended for use in industrial machine-safety applications, including emergency-stop monitoring, safety-gate monitoring, light-curtain circuits, production equipment, packaging machinery, conveyor systems, and machine-tool installations. The Pilz PNOZ XV1P 3/24VDC supports automatic start or monitored start configurations. The correct starting method depends on the safety application and applicable machinery requirements. For example, monitored-start arrangements may be necessary where an intentional restart action is required after a safety device has been activated.

Specifications Details : Pilz PNOZ XV1P 3/24VDC



Specification Details
Manufacturer Pilz
Product Series PNOZ X
Model PNOZ XV1P 3/24VDC 2n/o 1n/o t
Product ID 777601
GTIN 4046548009286
Product Type Safety Relay
Supply Voltage 24 V DC
Power Consumption 3.5 W
Number of Inputs 2, as supplied
Input Configuration 1-channel / 2-channel wiring
Output Configuration 2 N/O safety contacts + 1 timed N/O contact
Timed Output N/O, timed release
Selectable Release Time 0.1–3 seconds
Start Mode Automatic / monitored start
Terminal Type Plug-in screw terminals
Module Width 22.5 mm
Safety Applications Emergency stop, safety gates, light curtains
Stated Contact Rating Up to 5 A at 240 V AC / 24 V DC for specified utilization categories
Approvals Listed CE, UKCA, cULus, TÜV, EAC, CCC

Feature Benefit
24 V DC Operation Supports compatible industrial control systems.
Two Normally Open Safety Contacts Provides safety-related switching paths for suitable circuit designs.
One Timed N/O Contact Supports applications requiring a configured release delay.
Adjustable 0.1–3 Second Release Time Provides flexibility for permitted timing functions.
One- or Two-Channel Input Wiring Supports different safety-device circuit configurations.
Contact-Short Monitoring Capability Can help detect certain wiring faults when supported by the selected configuration.
Automatic or Monitored Start Supports different restart arrangements according to the application.
Compact 22.5 mm Housing Helps save control-panel space.
Plug-In Screw Terminals Supports practical wiring and maintenance.
Industrial Safety Design Supports suitable machine-safety control applications.
Multiple Output Contacts Provides options for integrating compatible control circuits.
Established PNOZ X Product Family Supports integration into suitable industrial safety systems.

Application Purpose
Emergency-Stop Monitoring Monitors compatible E-STOP circuits.
Safety-Gate Monitoring Supports safety-gate interlocking circuits.
Light-Curtain Monitoring Interfaces with compatible protective light-curtain systems.
Industrial Machinery Implements defined machine-safety control functions.
Machine Tools Supports suitable safety-related control circuits.
Production and Assembly Machinery Provides safety-device monitoring in production equipment.
Factory Automation Supports machine-safety functions in automated installations.
Packaging Machinery Interfaces with compatible safety devices on packaging lines.
Conveyor Systems Supports safety monitoring in suitable conveyor applications.
Safety Control Panels Provides a compact relay-based safety-control component.
Machine Protection Systems Supports safety-related switching as part of a validated system.
Industrial Automation Equipment Integrates compatible safety devices into machine-control circuits.
📦 What’s Included
  • Pilz PNOZ XV1P 3/24VDC 2n/o 1n/o t Safety Relay
  • Product ID: 777601
